| Business Type | Manufacturer, Exporter, Supplier |

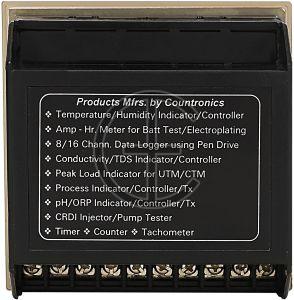

| Type | Panel Mounted Tachometer |
| Display | 4 Digit Red LED 0.56 |
| Range | 20 To 9999 RPM (resolution 1RPM) And 10,000-50,000 RPM (resolution 10 RPM) |
| Click to view more | |
Product Details
Sensor
Non-contact Proximity Sensor To Take 1 Pulse/rev From Rotor
Sensor Supply
10V To Drive Proximity Sensor
Accuracy
+/- 1 RPM +/- 1 Digit In The Range 20 To 9999 RPM
Size
96x96mm Or 48x96mm
Supply
220V AC +/- 15%
Mounting
Panel Mounting
Features
- Wide Measurement range from 15 RPM to 75,000 RPM.
- Available in both 48×96 and 96x96mm front
- High brightness LED display with leading zero blanking gives the exact RPM.
- This tachometer uses an advanced Micro Computer LSI Circuit with Quartz Crystal time base to give high accuracy and fast measurement.
- The use of a durable, strong metallic power coated housing assures maintenance free performance for many years.
