| Business Type | Manufacturer, Exporter, Supplier |

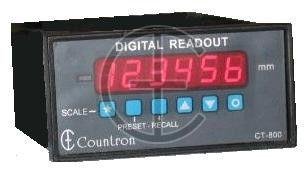

| Display | 6 Digit 7 Segment Red LED Display, Red LED For Negative Sign |
| Input Signal | +5V Pulses From Channel A And Channel B Of Encoder |
| Encoder Supply | 12V DC |
| Click to view more | |
Product Details
Scale Factor
User Settable From 0.00001 To 9.99999
Count Per Rev.
(Pulses/Rev From Encoder) X Scale Factor
Preset Value
User Settable From -999999 To 999999
Count Range
-999999 To +999999
Memory
EEPROM To Save Settings And Count On Power Failure
Set Limit Range
0-999999 For Both Set Limits
Control Action
Relay-HI For Count > Set-Hi, Relay-Lo For Count < Set-Lo
Supply
220V AC ± 15%
Size
48mm X 96mm X 180mm
Humidity
Up To 90% (non-condensing)
Features
- 6 digit bright 7 segment Red LED display for count display
- Scale factor user settable from 0.00001 to 9.99999
- Two individual set points, one high one low for control action
- 6 digit Preset value user settable
- Pulse multiplication technique used for counting improves resolution 4 times.
- Solid state memory to save user settings and count on power failure
- Program Lock to prevent tampering with settings
- Aesthetically designed front panel with touch type membrane keys
- Housed in plastic ABS cabinet
Program Lock
- By rear jumper (open to lock) to prevent changes in Scale factor
- Preset value
- Disables Resetting of Count (Zero)
- Disables Presetting of Count to preset value
