PH/ORP
Leading Manufacturers, Exporters and Wholesaler of 100-ORP Dual Limits and Dual Alarms ORP Controller, 150-ORP Single Set with Band-type Alarm ORP Controller, Dual Limits ORP Controller with Isolated TX. 4-20mA Output, Model 112pH PH Controller, Model 121pH PH Controller, Model 122pH PH Indicator with Isolated Transmitter and Model 7215-01 PH and ORP Controller from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Orp Controllers |
| Material | Plastic |
| Packaging | Box |
| Usage | Monitoring And Controlling ORP Levels |
| Power Source | Electric |
| Display | LCD Display |
| Dimensions | 6 X 4 X 2 Inches |
| Business Type | Manufacturer, Exporter, Supplier |
| Display | 3½ Digit LCD |
| Calibration Zero Adjust | Range ± 30mV |
| Range | -1999mV To +1999mV |
| Accuracy | 0.5% ± 1 Digit |
| Set Limits | 0 To 1999mV For Oxidation/Reduction |
| Input Impedance | >1012 Ω |
| Tx. Output | 4-20mA Isolated For 0-1999mV |
| Consent Contact Input | From PH Controller. If Open, Cuts Off All Relay Outputs |
| Supply | 110V/220V AC ±10% @ 50/60Hz |
| Size | Front Facia 96mm X 96mm, Cut Out 92mm X 92mm |
| Enclosure | Plastic (ABS) Flame Retardant |
| Weight | 800gms |
Features
- Accurate ORP display with calibration facility on front panel
- One set limit and other window alarm alarm limit with separate relays for Oxidation and alarms
- Isolated Tx. 4-20mA output for remote monitoring or recording.
- Consent contact input to enable/disable the control outputs
- LCD display for low voltage consumption
Relay Logic
- Oxidation Relay ON for ORP < Set Limit
- Alarm Relay ON for ORP < Set Limit – Alarm and
- ORP > Set Limit + Alarm
- Contact rating 5A at 220V AC
Front Panel
- One membrane switch to press and read Oxid. Limit
- A second membrane switch to read the Alarm. Limit
- Screw type trimpot to adjust the Calibration Zero
| Business Type | Manufacturer, Exporter, Supplier |
| Display | 3½ Digit LED 0.56” Character Height |
| Range | -1999mV To +1999mV |
| Calibration Zero Adjust | Range ± 30mV |
| Set Limits | 0 To 1999mV For Oxidation/Reduction |
| Accuracy | 0.5% ± 1 Digit |
| Input Impedance | >1012 Ω |
| Tx. Output | 4-20mA Isolated For 0-1999mV |
| Supply | 110V/220V AC ±10% @ 50/60H |
| Size | Front Facia 96mm X 96mm, Cut Out 92mm X 92mm |
| Weight | 800 Grams |
Features
- Accurate ORP display with calibration facility on front panel.
- Independent 2 Set Point controller with separate relays for Oxidation and Reduction
- Isolated Tx. 4-20mA output for remote monitoring or recording.
- Consent contact input to enable/disable the control outputs
- Bright Red LED display for clear viewing
Relay Logic
- Reduction Relay ON for ORP > Set Limit
- Oxidation Relay ON for ORP < Set Limit
- Contact rating 5A at 220V AC
Front Panel
- One membrane switch to press and read Oxid. Limit
- A second membrane switch to read the Reduc. Limit
- Screw type trimpot to adjust the Calibration Zero
| Business Type | Manufacturer, Exporter, Supplier |
| Type | PH Controller |
| Display | 3½ Digit Red, 0.8” Character Height LED Display |
| Range | 0.00 To 14.00 PH |
| Auto Temp | 0-100˚C Using PT100 Ext. Sensor Compensation |
| Relay Outputs | Contact Rating 5A At 220V AC |
| Relay Logic | Acid Relay ON For PH> Set Limit + Hysterisis, Base Relay ON For PH < Set Limit – Hysterisis |
| Calibration | Standard PH-7 : 7.00 ± 1, Slope PH-4 : 4.00 ± 1 |
| Accuracy | 0.5% ± 1 Digit |
| Input Impedance | >1012 Ω |
| Supply | 220V AC ±10% @ 50/60Hz |
| Size | Front Facia – 96mm X 96mm X 50mm, Cut Out – 92mm X 92mm |
| Enclosure | Plastic ABS |
| Weight | 700gms |
Features
- Accurate pH display with calibration facility on front panel.
- Large 0.8” Red 7 Segment Display
- Auto Temp Compensation using external PT100
- Independent 2 Set Point controller with separate relays for each set limit
- Digital calibration for pH-7 and pH-4
- Slim enclosure of only 50mm depth

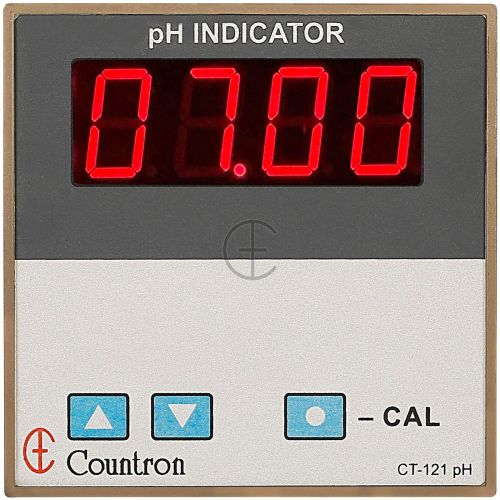

| Business Type | Manufacturer, Exporter, Supplier |
| Type | PH Controller |
| Display | 3½ Digit Red, 0.8” Character Height LED Display |
| Range | 0.00 To 14.00 PH |
| Auto Temp | 0-100˚C Using PT100 Ext. Sensor Compensation |
| Calibration | Standard PH-7 : 7.00 ± 1, Slope PH-4 : 4.00 ± 1 |
| Accuracy | 0.5% ± 1 Digit |
| Input Impedance | >1012 Ω |
| Supply | 220V AC ±10% @ 50/60Hz |
| Size | Front Facia – 96mm X 96mm X 40mm, Cut Out – 92mm X 92mm |
| Enclosure | Plastic ABS |
| Weight | 700gms |
Features
- Accurate pH display with calibration facility on front panel.
- Large 0.8” Red 7 Segment Display
- Auto Temp Compensation using external PT100
- Digital calibration for pH-7 and pH-4
- Slim enclosure of only 40mm depth

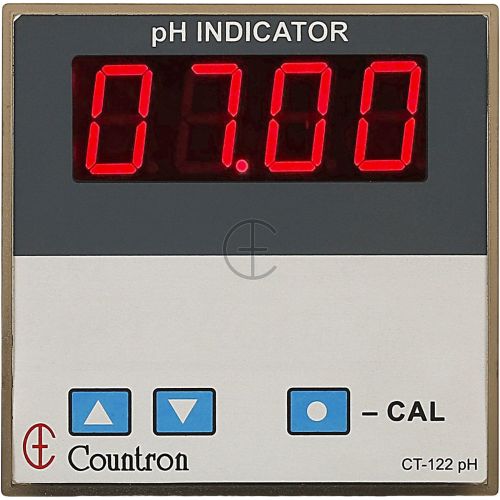

| Business Type | Manufacturer, Exporter, Supplier |
| Type | PH Indicator With Isolated Transmitter |
| Display | 3½ Digit Red LED Display |
| Range | 0.00 To 14.00 PH |
| Auto Temp | 0-100˚C Using PT100 Ext. Sensor |
| Calibration | Standard PH-7: 7.00 ± 1, Slope PH-4: 4.00 ± 1 |
| Accuracy | 0.5% ± 1 Digit |
| Transmitter Out | 4-20mA Isolated Transmitter Output For 0-14.00pH |
| Input Impedance | >1012 Ω |
| Supply | 220V AC ±10% @ 50/60Hz |
| Size | Front Facia - 96mm X 96mm X 50mm, Cut Out - 92mm X 92mm |
| Enclosure | Plastic ABS |
| Weight | 700gms |
Features
- Accurate pH display with calibration facility on front panel.
- Large 0.8” Red 7 Segment Display
- Auto Temp Compensation using external PT100
- Isolated 4-20mA transmitter output for logging, remote display etc.
- Digital calibration for pH-7 and pH-4
- Slim enclosure of only 50mm depth

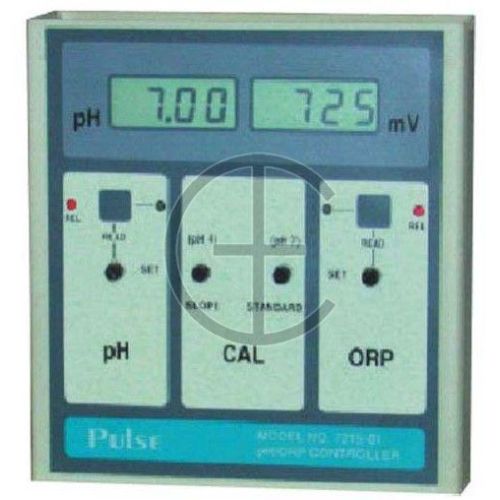

| Business Type | Manufacturer, Exporter, Supplier |
| Type | PH And ORP Controller |
| PH Range | 0.00 - 14.00pH |
| PH Resolution | 0.01pH |
| PH Control | Adjustable Set Point In Range 5.20 - 10.00pH |
| ORP Range | +/- 1999mV ORP |
| ORP Resolution | +/-1mV ORP |
| ORP Control | Adjustable Set Point In Range 200 - 600mV |
| Display | PH LCD / H=1 /2 |
| Dimensions | 6.2x 6.7x 2.2 |
| Weight | 1.7Lbs. / 0.8kg |
| Power Consumption | 115VAC/60Hz / 0.25Amp |
| PH And ORP Outlets | 115VAC/60Hz / Maximum 5 Amp. Per Outlet |
Features
- Simultaneous display of pH and ORP
- Simultaneous control of two pumps/valves
- 115/220 VAC (Internally selectable)
- Heavy Duty 10 Amp at 115VAC Relays
- This unique control system allows both pH and ORP to be controlled and monitored simultaneously. ORP measures the oxidation level in the water typically as a result of water treatment by Chlorine, Bromine, Ozone, Peroxides, Peracetic Acid, etc., and pH allows optimum conditions for the chemistry to be effective.
- Chemical Automation is recommended by Health Department officials and water quality experts as the only reliable solution to the problems of water chemistry, and in the maintenance of safe and hygienic water. Chemical automation pays for itself very rapidly, through savings in chemicals and maintenance.
