RPM/Tachometer
Leading Manufacturers, Exporters and Wholesaler of CT100 Portable Digital Tachometer, CT550 Non Contact Portable Digital Tachometer, Digital Tachometer with 2 Alarm Limits, Digital Tachometer with Adjustable Multiplier, Non Contact Panel Mounted Tachometer and Range 0-2500 RPM Portable Digital Tachometer from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Tachometer |
| Range | 0-9,999 RPM |
| Resolution | 1 RPM |
| Accuracy | +/- 1 RPM |
| Display | Red 7 Seg |
| Operating Voltage | 6 V DC |
| Battery Required | 4 Nos 1015 Type |
| Frequency Standard | Quartz Crystal |
| Gating Period | 1 Sec. |
| Weight | Approx 300 Grms. |
| Memory | Actualted By Torch Switch |
| Battery | Low Inidication Provided, Auto Shut Off Facility Built-in |
| Accessories | Male Female Rubber Centres, Rubber Disc To Measure Surface Speed Directly |
Features

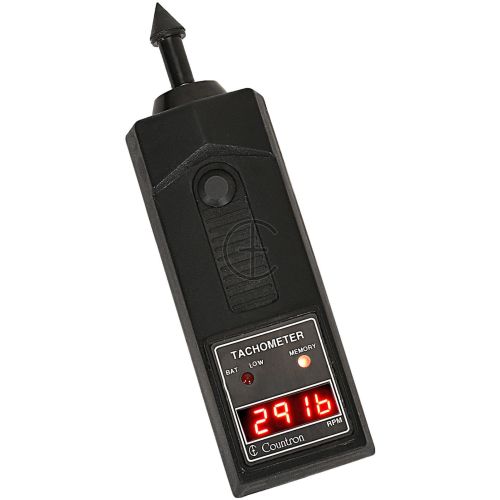

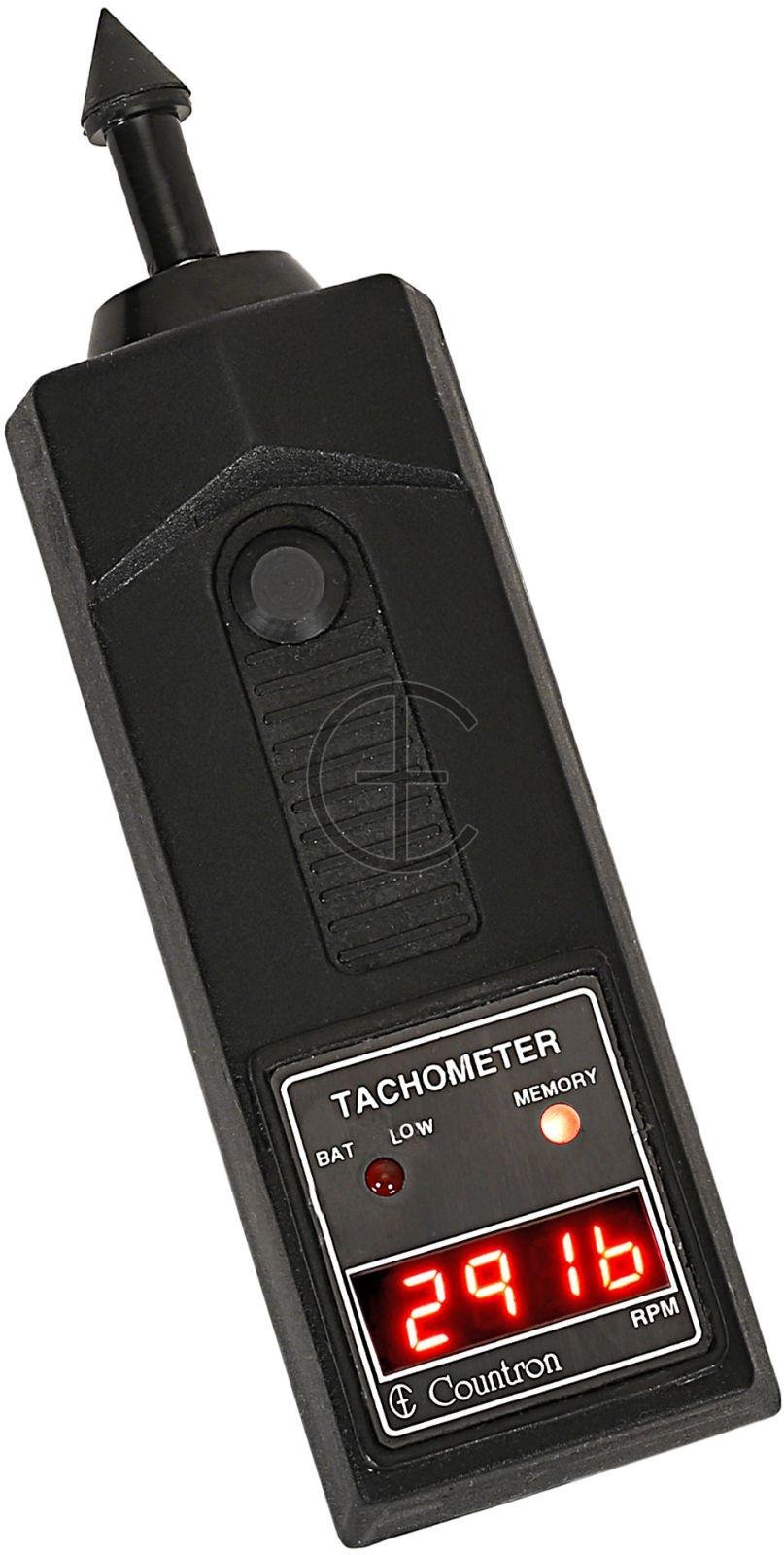

- This Digital Tachometer is a rugged, reliable and accurate instrument to measure rotational and surface speeds.
- LSI circuits used offer high reliability.
- Rotational and Surface speeds displayed by seven segment Light Emitting Diodes (LEDs) can be read in varied ambient light conditions.
- This equipment housed in a compact attractive plastic moulded casing comfortably fits into your hand and the serrated finish facilitates good grip.
- The transmission shaft balanced on two life lubricated ball bearings, is designed to have a minimum loading on the rotor.
- The memory circuit facilitates measurement of speeds at places not easily accessible to read and helps to retain the data. Storage in memory is indicated by an LED. Another LED is provided to indicate the Low/Nornal condition of the Battery.
- Auto shut-off circuit is built-in and if the instrument is left unattended with power on, the electronic switch cuts off power after about 35 sec.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Tachometer |
| Display | 4.5 Digit LED With Leading Zero Blanking |
| Range | 20 RPM To 75,000 RPM (Resolution 10 RPM Over 9,999 RPM) |
| Distance | Operating From 3 To 5 Inch Using A Reflective Photo-Reflective Sticker |
| Light | Red Visible LED Light (No Filament Bulb Used) |
| Power Supply | 4 Standard Pencil Cells |
| Accuracy | 1 RPM ± 1 LSD Below 19,999 RPM & 10 RPM ± 1 LSD Above 19,999 RPM |
| Calibration | Referred To Quartz Crystal |
| Sampling Time | 1 Sec. Over 60 RPM |
| Circuit | Micro Controller Based LSI |
| Operation Temperature | 0 - 50°C |
| Size | 160x60x45 Mm |
| Weight | Approx 300 Grms |
| Memory | Automatic When 'Measure' Button Is Released; Last Reading Stored |

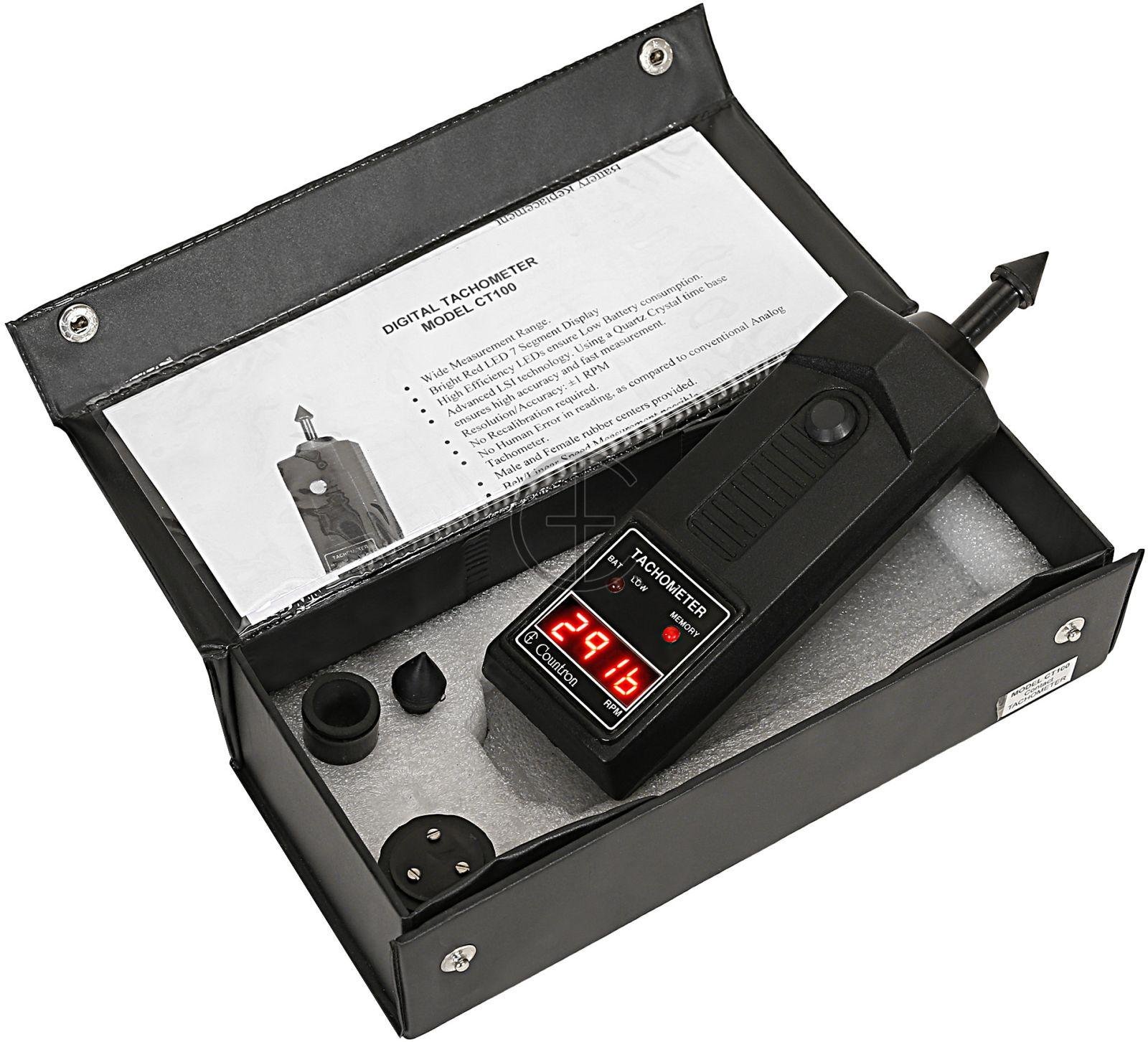

| Accessories | Carrying Case- 1 Pc |
Features
- Wide Measurement range from 15 RPM to 75,000 RPM.
- The last measured value is automatically stored in memory when the ‘measure’ button is released.
- Bright Red LED display with leading zero blanking gives the exact RPM.
- The battery consumption is very low. In Non-measure mode i.e. the measure button is released (memory ON), the battery consumption is still lower.
- This tachometer uses an advanced Micro Computer LSI Circuit with Quartz Crystal time base to give high accuracy and fast measurement.
- A high intensity RED LED for photo- tachometer gives a visible low current consumption beam. Unlike a filament bulb, an LED has almost infinite life.
- The use of a durable, strong ABS plastic housing assures maintenance free performance for many years. This housing fits comfortably in the palm of the user.
| Business Type | Manufacturer, Exporter, Supplier |
| Range | 20 To 9999 RPM |
| Displayed RPM | (RPM Of Rotor X No Of Teeth) ? Scale Factor |
| Sensor | Electromagnetic Sensor (Can Be Factory Modified For Proximity Sensor) |
| Scale Factor | 1-99 User Settable Depending On Number Of Teeth/keyways On Rotor |
| Display Type | 4 Digit Bright 7 Segment Display For RPM |
| Alarm Outputs | Two Separate Alarm Outputs User Settable |
| Application | Suitable For Use With Electromagnetic Sensor. Can Be Modified For Proximity Sensor |
| Indication | Front Panel LED Indication For Signal Status |
| Security Feature | Rear Configuration Lock To Prevent Tampering With Configuration |
| Material | ABS Cabinet |
| Packaging | Aesthetically Designed Front Panel With Touch Type Membrane Switches |
Display
- 4 digit 7 segment Red LED display for RPM
- 2 LEDs to indicate relay status
- 1 LED to indicate input signal status
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Tachometer |
| Display | 6 Digit 7 Segment Red LED Display |
| Displayed RPM | RPM Of Shaft X Scale Factor |
| Range | 5000.0 RPM For 0.10000 < Scale Factor < 0.99999 |
| Sensor | Non-contact Proximity Sensor To Take 1pulse/rev From |
| Resolution | 0.001 RPM To 1 RPM |
| Material | ABS Cabinet |
| Application | Suitable For Use With Proximity Sensor. Can Be Modified For Electromagnetic Sensor. |
| Additional Features | Rear Scale Factor Lock To Prevent Tampering With Scale Factor, Aesthetically Designed Front Panel With Touch Type Membrane Switches |
| Business Type | Manufacturer, Exporter, Supplier |

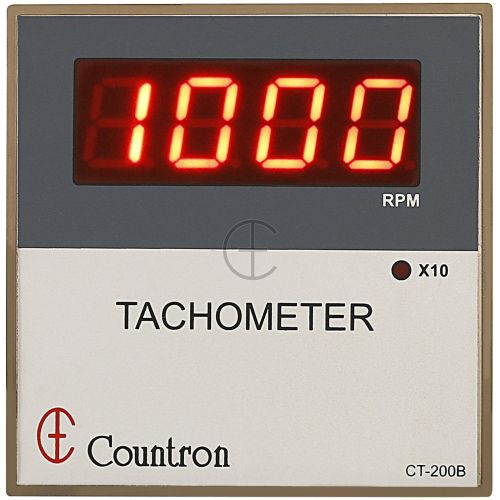

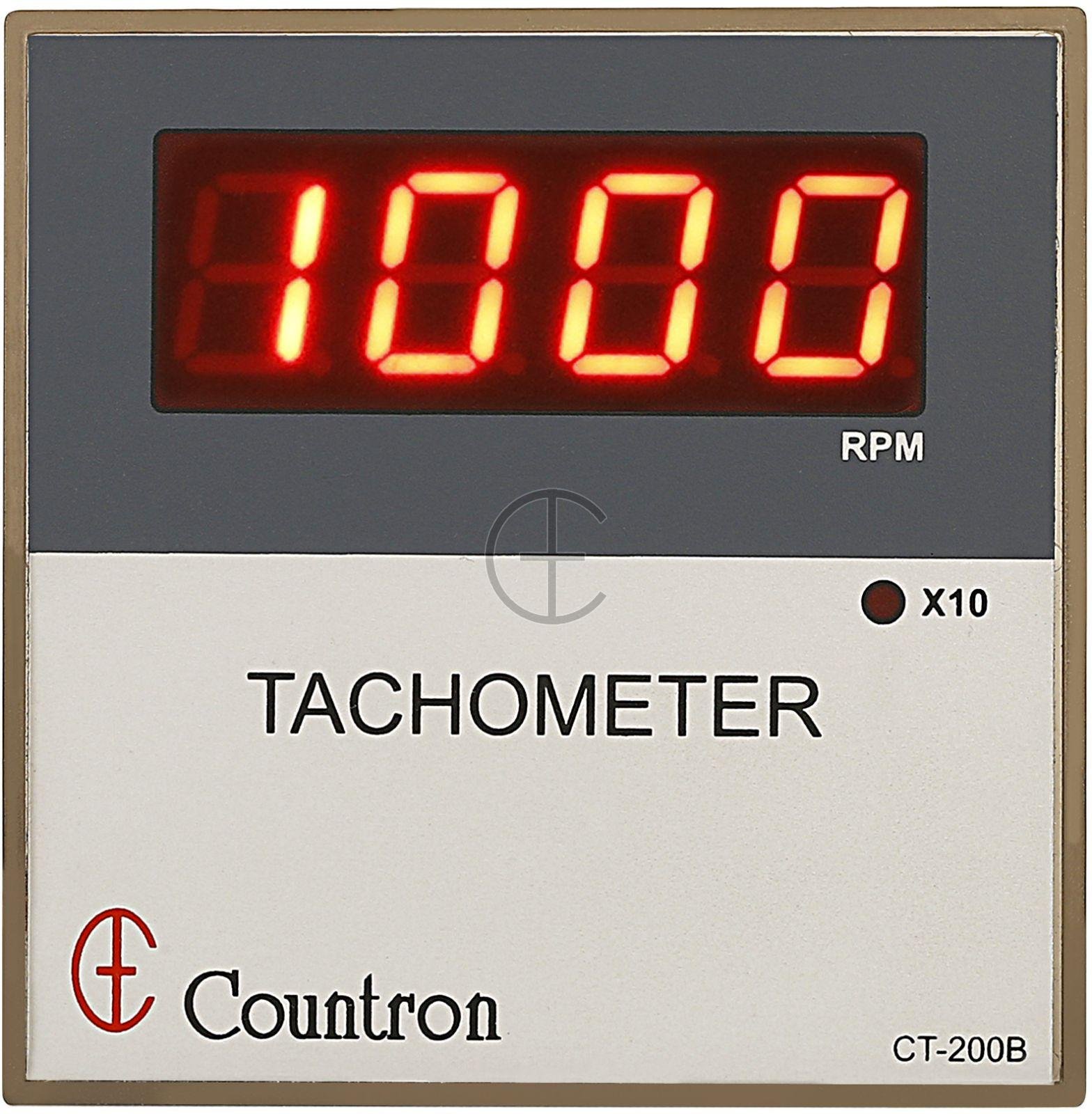

| Type | Panel Mounted Tachometer |
| Display | 4 Digit Red LED 0.56 |
| Range | 20 To 9999 RPM (resolution 1RPM) And 10,000-50,000 RPM (resolution 10 RPM) |
| Sensor | Non-contact Proximity Sensor To Take 1 Pulse/rev From Rotor |
| Sensor Supply | 10V To Drive Proximity Sensor |
| Accuracy | +/- 1 RPM +/- 1 Digit In The Range 20 To 9999 RPM |
| Size | 96x96mm Or 48x96mm |
| Supply | 220V AC +/- 15% |
| Mounting | Panel Mounting |
Features
- Wide Measurement range from 15 RPM to 75,000 RPM.
- Available in both 48×96 and 96x96mm front
- High brightness LED display with leading zero blanking gives the exact RPM.
- This tachometer uses an advanced Micro Computer LSI Circuit with Quartz Crystal time base to give high accuracy and fast measurement.
- The use of a durable, strong metallic power coated housing assures maintenance free performance for many years.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Tachometer |
| Measurement Range | 0-2500 RPM |
| Display Type | Digital |
| Power Source | Battery |
| Material | Plastic |
| Application | Measuring RPM Of Rotating Objects |
| Accuracy | Typically ±1 RPM |
