| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Range | 1KN To 9999 |
| Input | From 2 Wire Loop Transmitter Giving 4-20mA Output 4-20mA Input => 0 – Range |
| Click to view more | |
Product Details
Relay Logic
When Actual Load ≥ Set Load Limit Relay Switches On.
Normal/Peak Mode
Selectable From Front Panel With LED Indication Of Mode
Peak Read
Last 9 Peaks Can Be Recalled With Facility To Reset Memory
Peak Detection
Peak Hold Is Resettable From Front Reset Switch Or By A Parallel Rear External Contact
Digital Tare
Digital Tare Using Front Panel Tare Switch Up To A Maximum Of 50KN
Memory
Non-volatile EEPROM To Save Settings
Supply
220V AC ± 15% @ 50/60Hz
Dimensions
Front Fascia: 96mm X 192mm Cut Out : 92mm X 188mm
Features
- Range for load indication corresponding to 4-20mA input digitally settable from front panel
- Peak/Normal mode selectable
- Up to 9 peaks can be recorded and recalled
- Buzzer annunciation at Peak
- Relay output for load limit detection with limit digitally settable
- Digital tare provided to remove initial error
- Non-volatile memory for saving configuration
- Configuration lock at rear to prevent tampering with Range
- Aesthetically designed front panel with membrane switches
Display
- 4 Digit 0.56” 7 segment Red LED display for Load (KN)
- 4 Digit 0.56” 7 segment Red LED display for Set Point (KN)

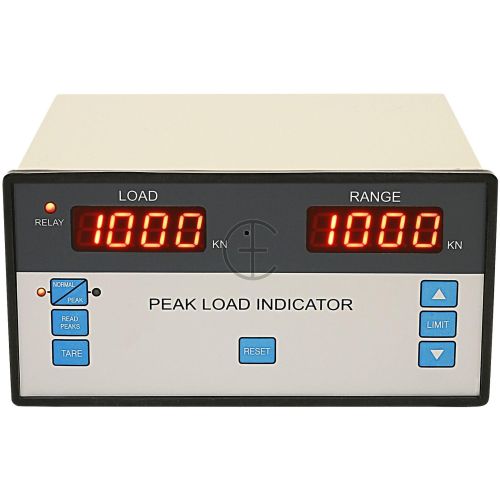

Looking for "CT901 Peak Load Recording Indicator" ?
