Conductivity, Indicator,Controller &Transmitter

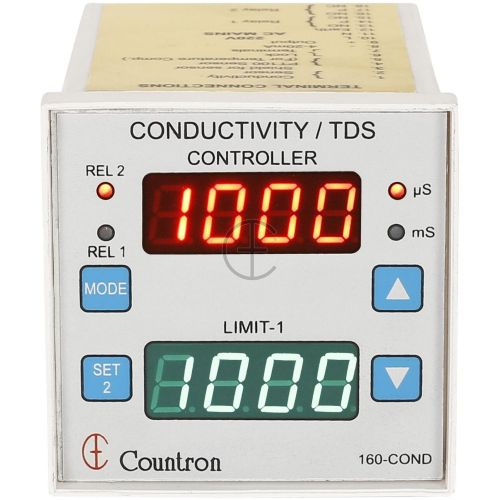

Leading Manufacturers, Exporters and Wholesaler of 160-COND Conductivity TDS Controller, 160-TDS TDS Controller, 2 Set Point Digital Conductivity Controller, Conductivity Transmitter, Digital Conductivity Cum TDS Indicator and PH ORP Conductivity TDS Indicator from Ghaziabad.

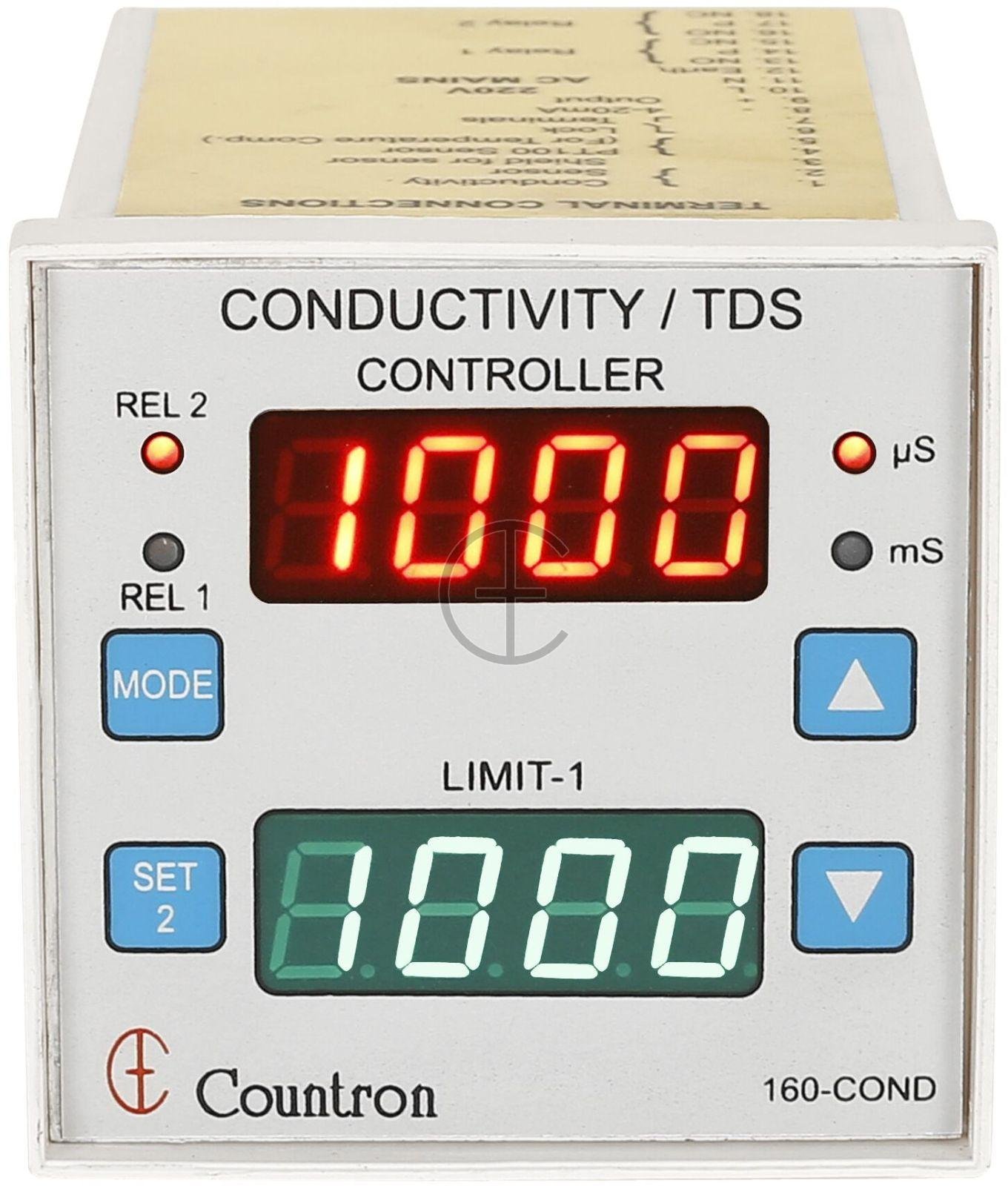

| Business Type | Manufacturer, Exporter, Supplier |
| Resolution | Conductivity: 0.01ms Or 0.01µs, TDS: 1ppm |
| Auto Temp. Comp | 0-100˚C Using PT100 External Sensor |
| Manual Temp. Comp | Settable From 0-100.0˚C |
| Cond/TDS Calibration | Digital Calibration By Factor Multiplication From 0.75-1.25 |
| Accuracy | 0.5% ± 1 Digit |
| Supply | 220V AC ±10% @ 50Hz |
| Enclosure | Plastic (ABS), Size - 96x96x110mm |
| Low Voltage | Set At 10.5V Internally, For Testing 12V Battery AH |
| Weight | 900 Grams |
Features
- Auto/Manual temperature compensation selectable
- Conductivity and TDS selectable from front panel
- Cell Factor selectable for both 1.0 and 0.1
- 4 Step Range selection 0.1µs to 199.9ms for conductivity
- Digital calibration for Conductivity/TDS
- Auto Temp Compensation using PT100 sensor
- Dual set limit with separate relay outputs
- Settable hysteresis for both set limits
- Bright Red LED display with separate display for set limit-1
- Aesthetically designed front panel with membrane switches and ABS cabinet
Display
- 0.56” Red LED 7 segment Display for Conductivity/TDS
- 0.56” Red LED 7 segment Display for Set-Limit-1
Recorder Output
Isolated 4-20mA => 0-2000 (for whatever unit and resolution selected (Maximum termination 250Ω)
Control Output
- Two set of NO-P-NC, 5 Amps potential free Relay Contacts
- Relay 1 ON, for Cond/TDS < Set Limit1 – Hysterises1, Relay 1 OFF, for Cond/TDS > Set Limit1
- Relay 2 OFF, for Cond/TDS < Set Limit2,Relay 2 ON, for Cond/TDS > Set Limit2 + Hysterises2

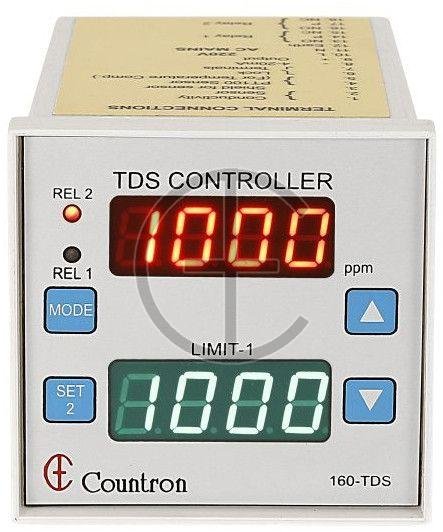

| Business Type | Manufacturer, Exporter, Supplier |
| Type | TDS Controller |
| Ranges | 0-5000ppm |
| Resolution | 1ppm |
| Manual Temperature Compensation | Settable 0-100.0˚C |
| Accuracy | 0.5% ± 1 Digit |
| Supply | 220V AC ±10% @ 50Hz |
| Enclosure Material | Plastic (ABS) |
| Enclosure Size | 96x96x110mm |
| Weight | 900 Grams |
Features
- Auto/Manual temperature compensation selectable
- Cell Factor selectable for both 1.0 and 0.1
- Digital calibration for TDS
- Auto Temp Compensation using PT100 sensor
- Dual set limit with separate relay outputs
- Settable hysteresis for both set limits
- Bright Red LED display with separate display for set limit-1
- Aesthetically designed front panel with membrane switches and ABS cabinet
Display
- 0.56” Red LED 7 segment Display for Conductivity/TDS
- 0.56” Red LED 7 segment Display for Set-Limit-1
Temp. Comp
- Uses PT100, precision temperature sensor (External)
- The Compensation is internally set at 2% per ˚C
Recorder Output
Isolated 4-20mA => 0-2000 (for whatever unit and resolution selected (Maximum termination 250Ω)

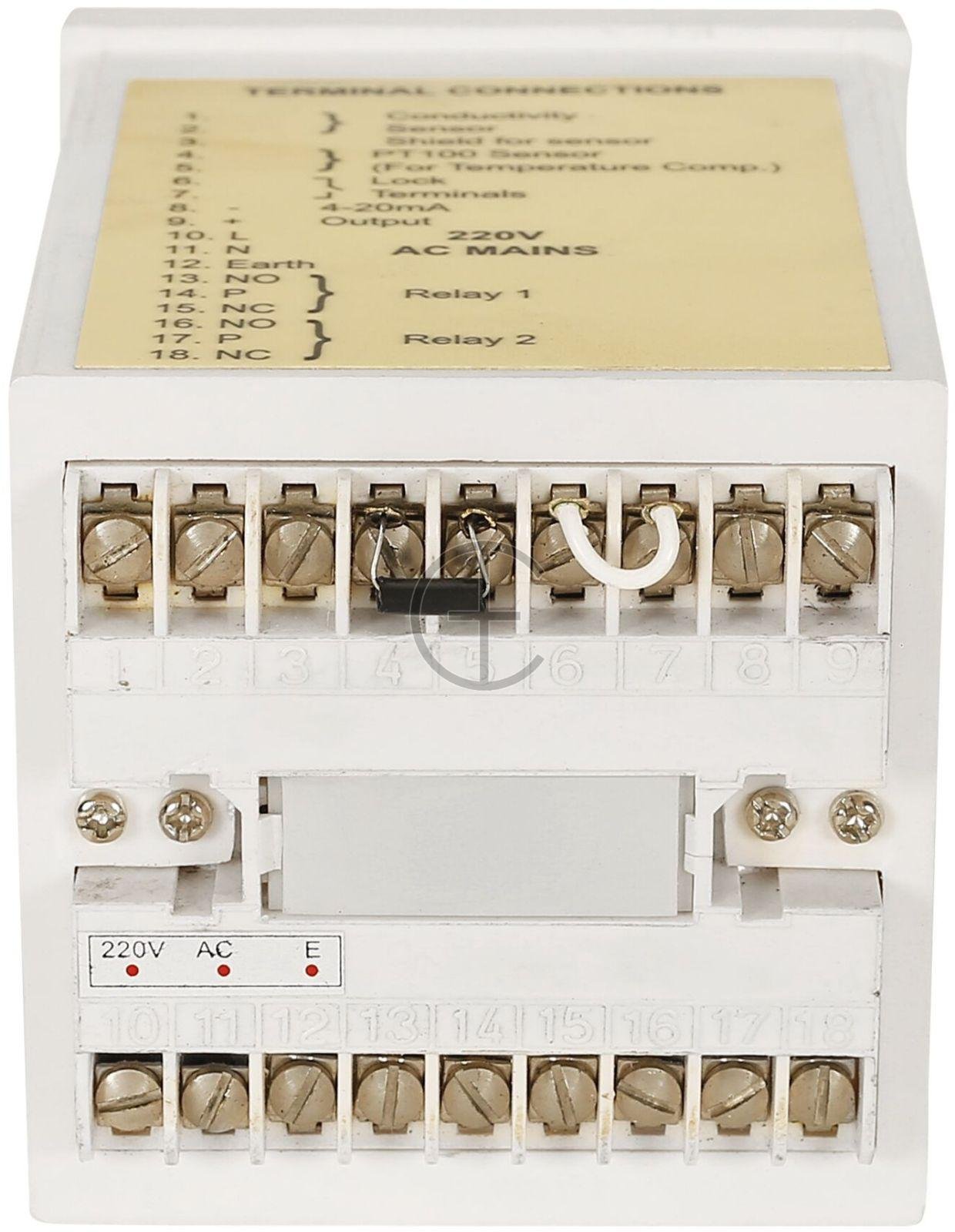

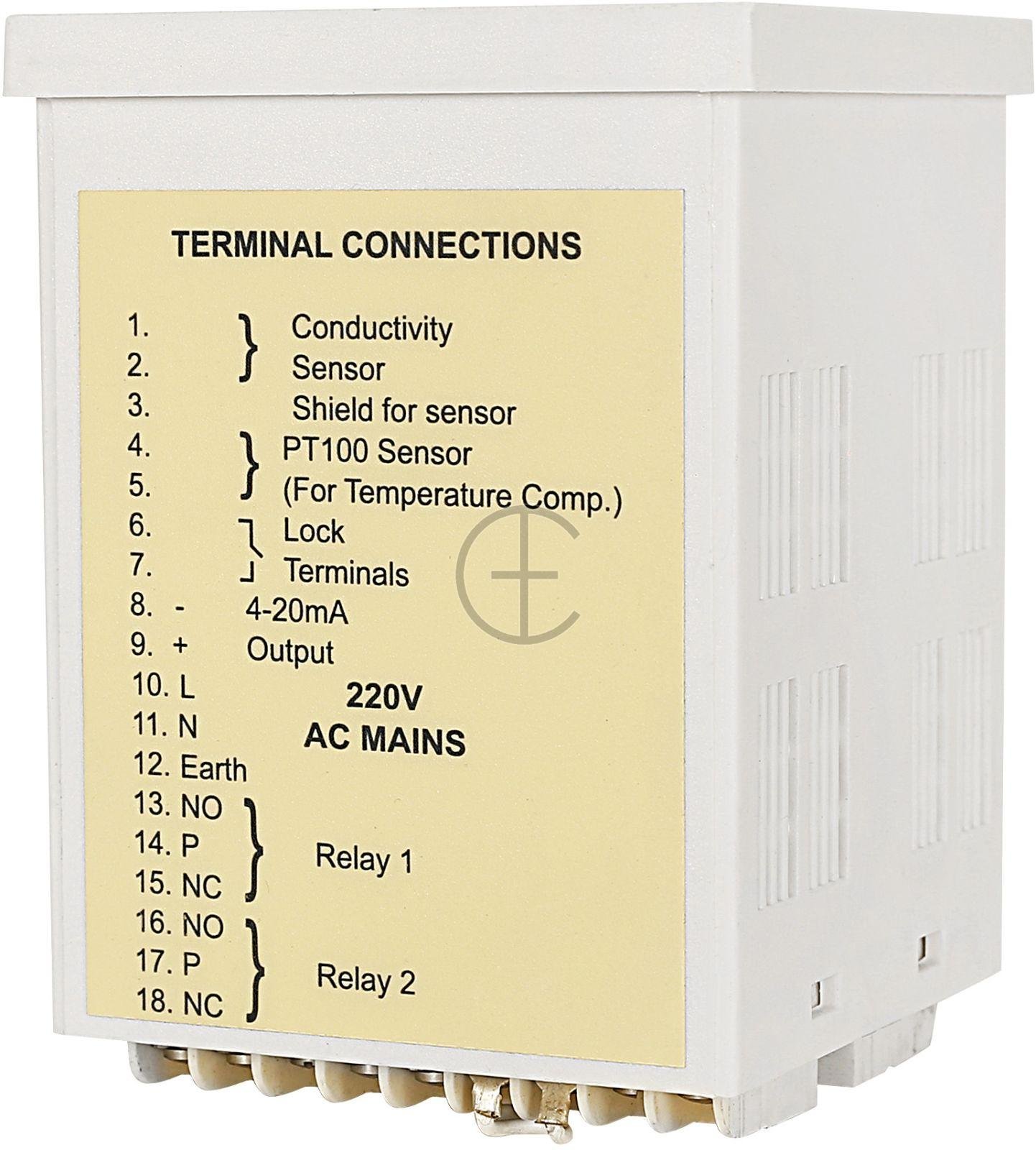

Control Output
- Two set of NO-P-NC, 5 Amps potential free Relay Contacts
- Relay 1 ON, for Cond/TDS < Set Limit1 – Hysterises1, Relay 1 OFF, for Cond/TDS > Set Limit1
- Relay 2 OFF, for Cond/TDS < Set Limit2,Relay 2 ON, for Cond/TDS > Set Limit2 + Hysterises2
| Business Type | Manufacturer, Exporter, Supplier |
| Display | 3½ Digit LCD |
| Resolution | 0.1μs To 0.1ms |
| Accuracy | ± 0.5% Of Full Scale |
| Sensor | Contact Type With Cell Constant 1.0 |
| Temperature | Uses PT100 Precision Temperature Sensor |
| Limit Setting | 2 Nos. 10 Turn Precision Trimpots On Front Panel |
| Recorder Output | 0-2V For The Selected Range |
| Supply | 110V AC/220V AC ± 15% Internally Selectable |
| Size | Front Fascia - 96mm X 96mm |
| Cabinet | Flame Retardant Grade Plastic Enclosure |
Features
- Precision indication of conductivity
- Automatic Temperature Compensation
- 4 Step Range selection 0.1μs to 199.9ms
- 2 independent Set Points with High and Low logics for on-line control
- Front Panel ‘touch type’ membrane switch to read the limits set
- Voltage corresponding to Conductivity available for external recorder
- ‘Cell Adjust’ on front panel for calibration.
Range
- a. 199.9μs
- b. 1999μs
- c. 19.99ms
- d. 199.9ms
The range is selectable from the rear and can be calibrated by ‘Cell Adj’ at the front for individual range.
Compensation
The Compensation is internally set at 2% per ˚C
NOTE: If PT100 is not available, then fix a simulated resistance of PT100 @ 25˚C approx. 110Ω. Instrument will not work otherwise.

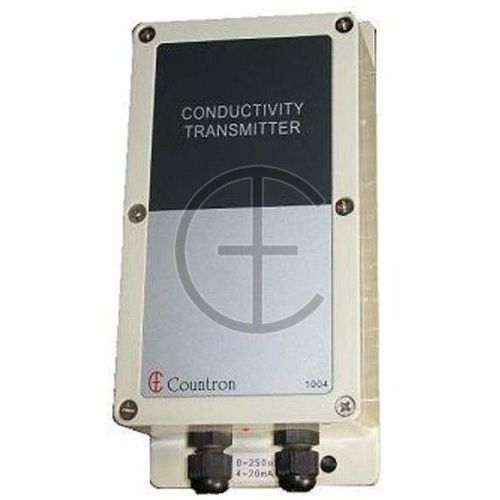

| Business Type | Manufacturer, Exporter, Supplier |
| Range | 19.99ms - 199.9ms |
| Factory Set Range | 1999 µs - 19.99ms, 199.9 µs - 1999 µs, 19.99 µs - 199.9 µs (0.1 Cell) (1.0 Cell) |
| Accuracy | ± 0.5% Of F.S. ± 1 LSD |
| Sensor Type | Contact Type With Cell Constant 0.1 Or 1.0 |
| Temperature Sensor | PT-100, Precision Temperature Comp. Sensor (external). Compensation Internally Set At 2%/˚C |
| Supply Voltage | 220V AC ± 15% @ 50Hz/60Hz |
| Size | 198mm X 89mm X 60mm (LxWxH) With Flange |
Features
- Precision indication of conductivity in 4-20mA output
- Automatic Temperature Compensation @2%/˚C using PT-100
- Range can be provided from 19.99 µs to 199.9mS (Factory Set)
- Aesthetically designed weather-proof cabine

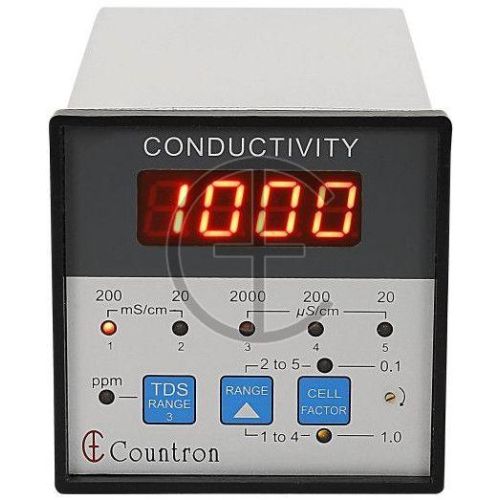

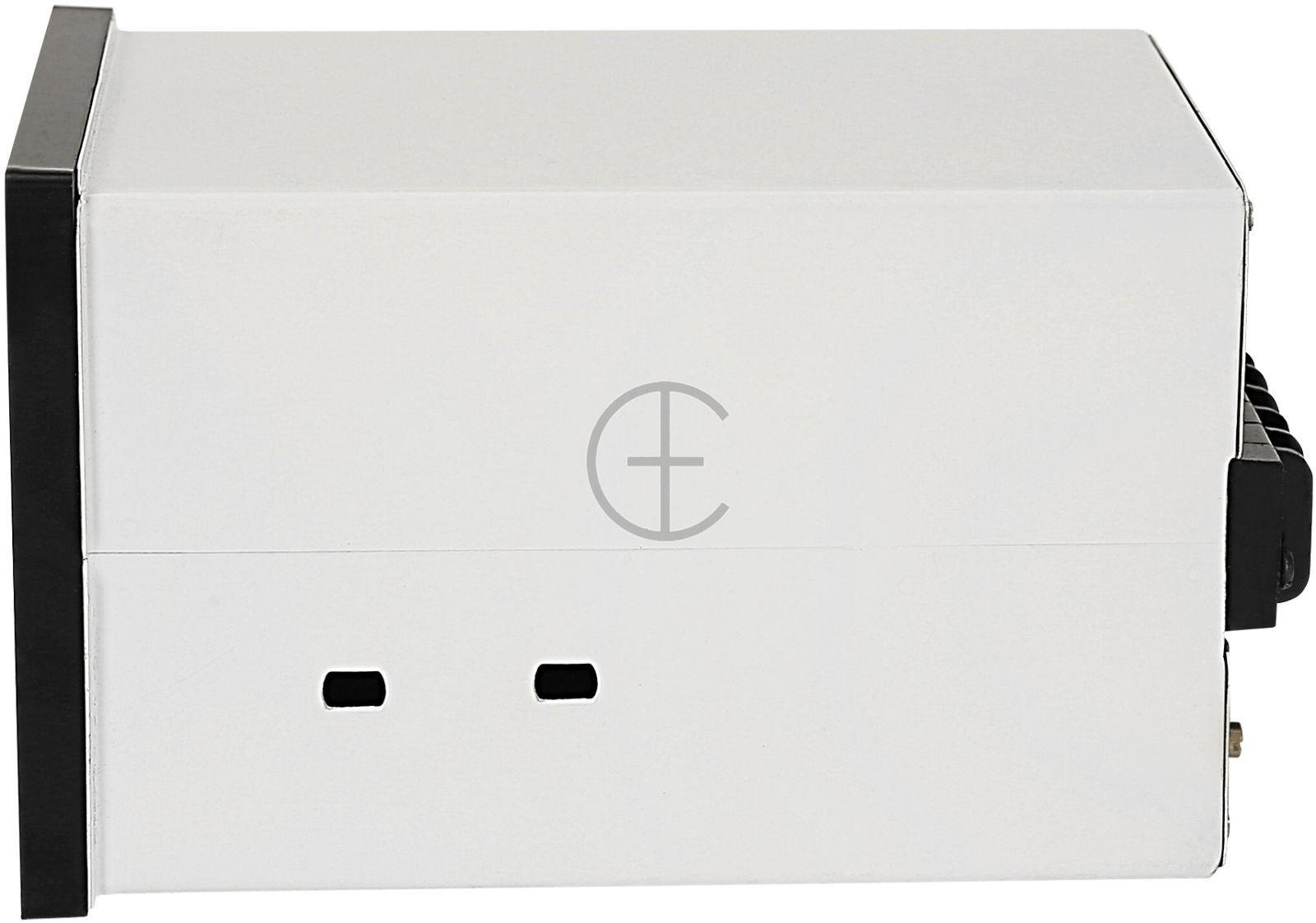

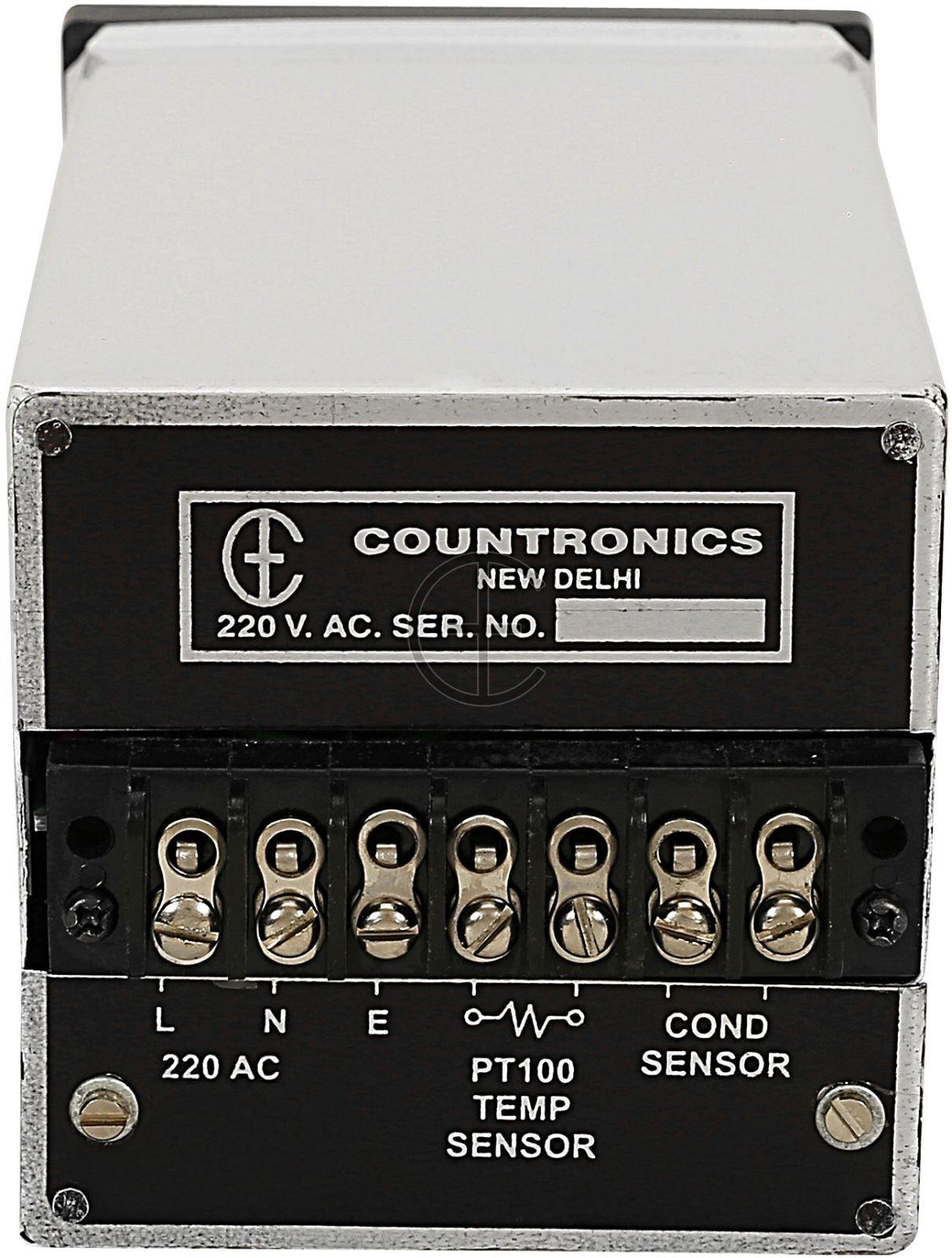

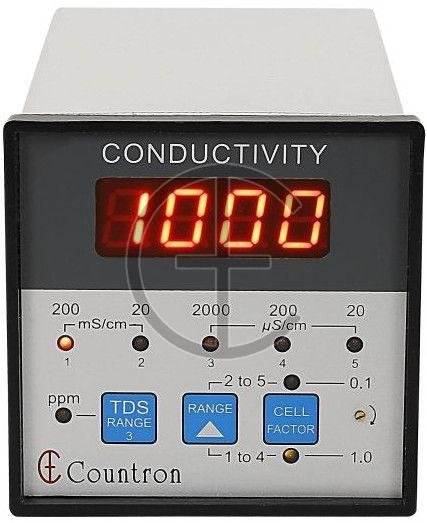

| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Type | TDS Indicator |
| Display | 3 1/2 Digit 13mm High, RED LED |
| Cell Factor | 1.0 & 0.1 Selectable |
| TDS Range | 2000 Ppm |
| Temperature Compensation | Automatic Using External PT-100 Sensor |
Features
- Precision indication of conductivity
- Automatic Temperature Compensation @2%/˚C using PT-100
- Front panel 5 range selector from 199.9ms to 19.99μs
- Cell factor selectable, 1.0 OR 0.1 with front panel calibration facility
- Reads T.D.S. in ppm
- Front panel ‘touch type’ membrane switches to select Range, cell factor and T.D.S.
- Bright RED LED display
Conductivity Range
A)For Cell Factor 1.0
- 199.9 mS/cm
- 19.99 mS/cm
- 19999 mS/cm
- 199.9 mS/cm
B)For Cell Factor 0.1
- 19.99 mS/cm
- 19999 mS/cm
- 199.9 mS/cm
- 19.99 mS/cm

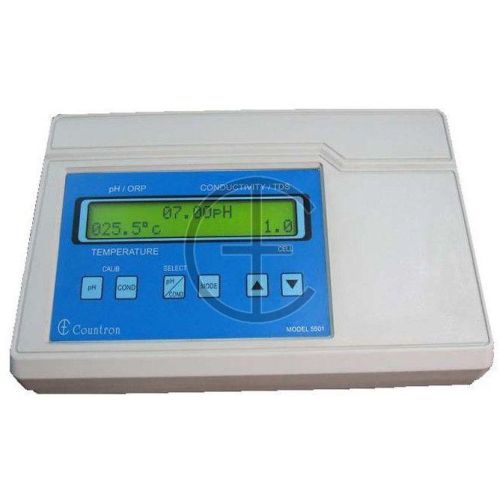

| Business Type | Manufacturer, Exporter, Supplier |
| Display | 2 Line Large Alphanumeric Display With Back Light Illumination |
| Auto Temp. Comp. | 0-100˚C Using PT100 External Sensor For PH And Conductivity |
| Manual Temp. Comp. | Settable From 0-100.0˚C For PH And Conductivity |
| PH Calibration | 2 Point Calibration With Auto Buffer Recognition. Buffers Recognized: 4.00, 7.00, 9.00, 10.00 PH |
| Conductivity Calibration | Digital Calibration By Factor Multiplication From 0.75-1.25 |
| Accuracy | 0.5% ± 1 Digit |
| Supply | 220V AC ±10% @ 50Hz |
| Enclosure | Plastic (ABS). Size – 272x192x90mm |
| Weight | 900gms |
Features
- Accurate pH display with 0.01pH resolution
- Auto buffer recognition with 2 point calibration for pH
- Auto/Manual temperature compensation selectable for both pH and Conductivity
- 4 Step Range selection 0.1µs to 199.9ms for conductivity
- Cell Factor selectable for both 1.0 and 0.1
- Digital calibration for conductivity
- Auto Temp Compensation using PT100 sensor
- One touch switching between conductivity and pH display selections
- Large alphanumeric LCD display with bright backlight
- Aesthetically designed front panel with membrane switches and sleek bench top cabinet
Ranges
- pH: 0.00 to 14.00 pH
- ORP: 0-2000mV
- Conductivity: 19.99ms/1999µs/199.9µs/19.99µs in 0.1 Cell Constant
- 199.9ms/19.99ms/1999µs/199.9µs in 1.0 Cell Constant
- TDS: 0-1999ppm
Resolution
- pH: 0.01pH
- ORP: 1mV
- Conductivity: 0.01ms or 0.01µs depending on range & Cell factor
- TDS: 1ppm
