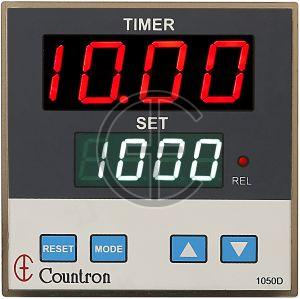

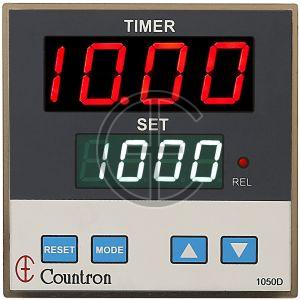

Programmable Timer

Link Copied

Edit

Business Type	Manufacturer, Exporter, Supplier
Feature	Durable, Easy To Use, High Accuracy
Display	4 Digit 0.8” Red 7 segment LED display for Time 4 Digit 0.56” Red 7 segment LED display for Set Time Red LED to indicate current status of Relay On/Off
Supply	220V AC ± 15% @ 50/60Hz
Click to view more

Product Details

Dimensions

Front Fascia: 96mm x 96mm x 50mm. Cut Out: 91mm x 91mm

Weight

800 grams

Memory

Non-volatile EEPROM to save settings

Timing direction

Up/Down time counting user settable

Features

6 different timing ranges of 99.99sec, 999.9sec, 9999sec,99Mins59Secs, 9999Mins, 99Hrs59Mins
Press to start/Power On start/Cyclic modes settable
Delayed On/Off programmable by user from front panel
Up/Down time counting user settable
User settable starting On/Off time for cyclic mode
Number of cycles settable for cyclic mode
Non-volatile memory to save configuration and timing
Configuration lockable by Password
Front Reset/Start switch with parallel terminals at rear
Aesthetically designed panel with membrane switches

Specifications

Display

4 Digit 0.8” Red 7 segment LED display for Time
4 Digit 0.56” Red 7 segment LED display for Set Time
Red LED to indicate current status of Relay On/Off

Modes

User settable from front panel

Power On start
Press to start (with battery backup selection using EEPROM)
Cyclic action

Number of Cycles : 1-199 cycles settable for cyclic mode after which the timer stops Setting number of cycles to Zero disables number of cycles setting

Reset/Start : Front Reset/Start switch with parallel terminals at rear to connect additional switch, if required.

Relay logic : Settable delayed On/Off, 5 Amps/220V AC Dual Relay Contact outputs

Timing direction : Up/Down time counting user settable

Memory : Non-volatile EEPROM to save settings
