Process Controller
Leading Manufacturers, Exporters and Wholesaler of 2600M Process Controller, 2602M Process Controller, Model CT-SV8 Process Controller, Universal Process Controller, Universal Programmable Process Indicator and Universal Temperature Indicator from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Display | 4 Digit 0.56” Red 7 Segment LED display |
| Inputs | 4-20mA |
| Accuracy | ±0.25% Of SPAN ± 1 Count |
| Resolution | Settable 0.000 To 0000 For Linear Inputs |
| Configuration Lock | Jumper At Rear |
| Exciter Voltage | 24V @ 30mA For Loop Tx |
| Rated Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Humidity | Up To 90% (non-condensing) |
| Power Consumption | 10VA |
| Case | 96 X 96 X 135 Mm Plastic ABS |
| Front Fascia | 48 X 96 Mm |
| Panel Output | 48 X 96 Mm |
Features
- Microprocessor based precision indicator
- Input for 4-20mA programmable from Tx for Pressure, Humidity, pH, Temperature etc.
- Span, Zero and resolution user programmable
- Display user programmable from -1999 to 9999
- 4 Digit 0.56” Bright 7 Segment LEDs
- Offset separately programmed from front
- Configuration lockable by rear jumper
- Excitation voltage for loop Transmitter
- Touch type membrane keys

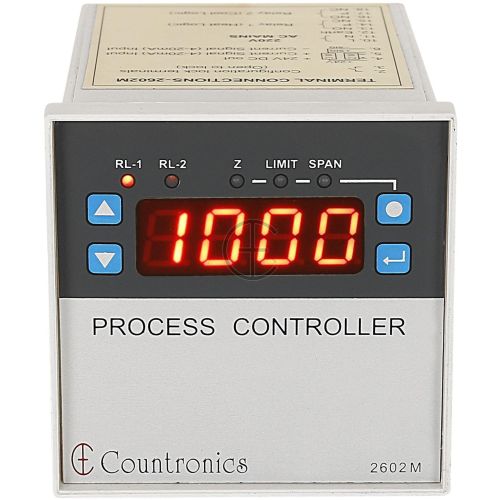

| Business Type | Manufacturer, Exporter, Supplier |
| Display | 4 Digit 0.56” Red 7 Segment LED display |
| Inputs | 4-20mA |
| Accuracy | ±0.25% Of SPAN ± 1 Count |
| Resolution | Settable 0.001 To 9999 For Linear Inputs |
| Control | 2 Set Of Control Limits, Set-1 Heater Logic & Set-2 Cooler Logic, 5 Amps/220V AC Relay Contact Output, Hysterisis Settable |
| Configuration Lock | Jumper At Rear |
| Exciter Voltage | 24V @ 30mA For Loop Tx |
| Rated Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Power Consumption | 10VA |
| Case | 96 X 96 X 135 Mm Plastic ABS |
Features
- Microprocessor based precision controller
- Input for 4-20mA from Tx for Pressure, Humidity, pH, Temperature etc
- Display user programmable from 0 to 9999
- 4 Digit 0.56” Bright 7 Segment LEDs
- Decimal user settable
- Separate heater & cooler logic relays
- Hysterisis of relay control settable
- Offset separately programmed from front
- Configuration lockable by rear jumper
- Excitation voltage for loop Tx. Sourced
- Touch type membrane control keys

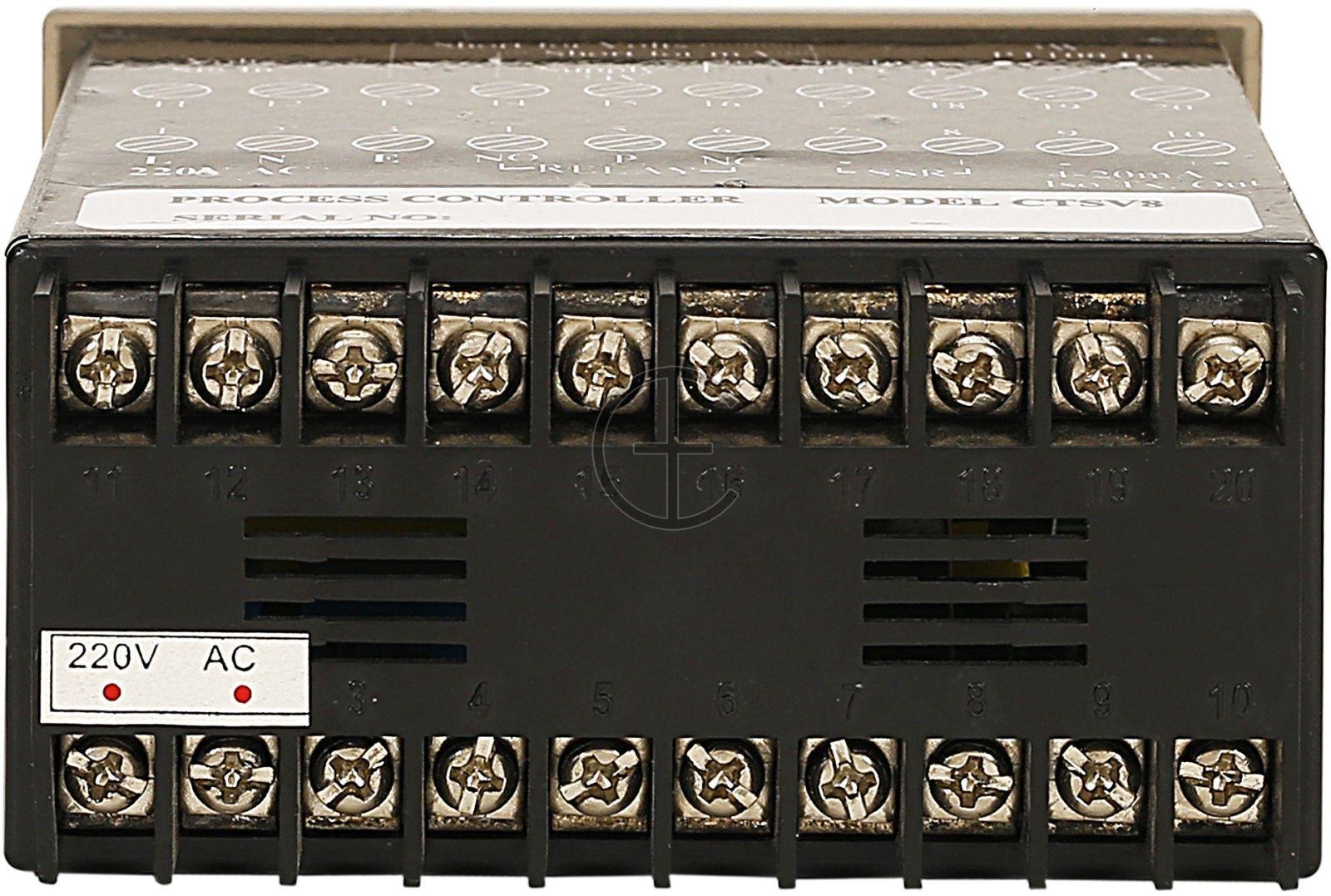

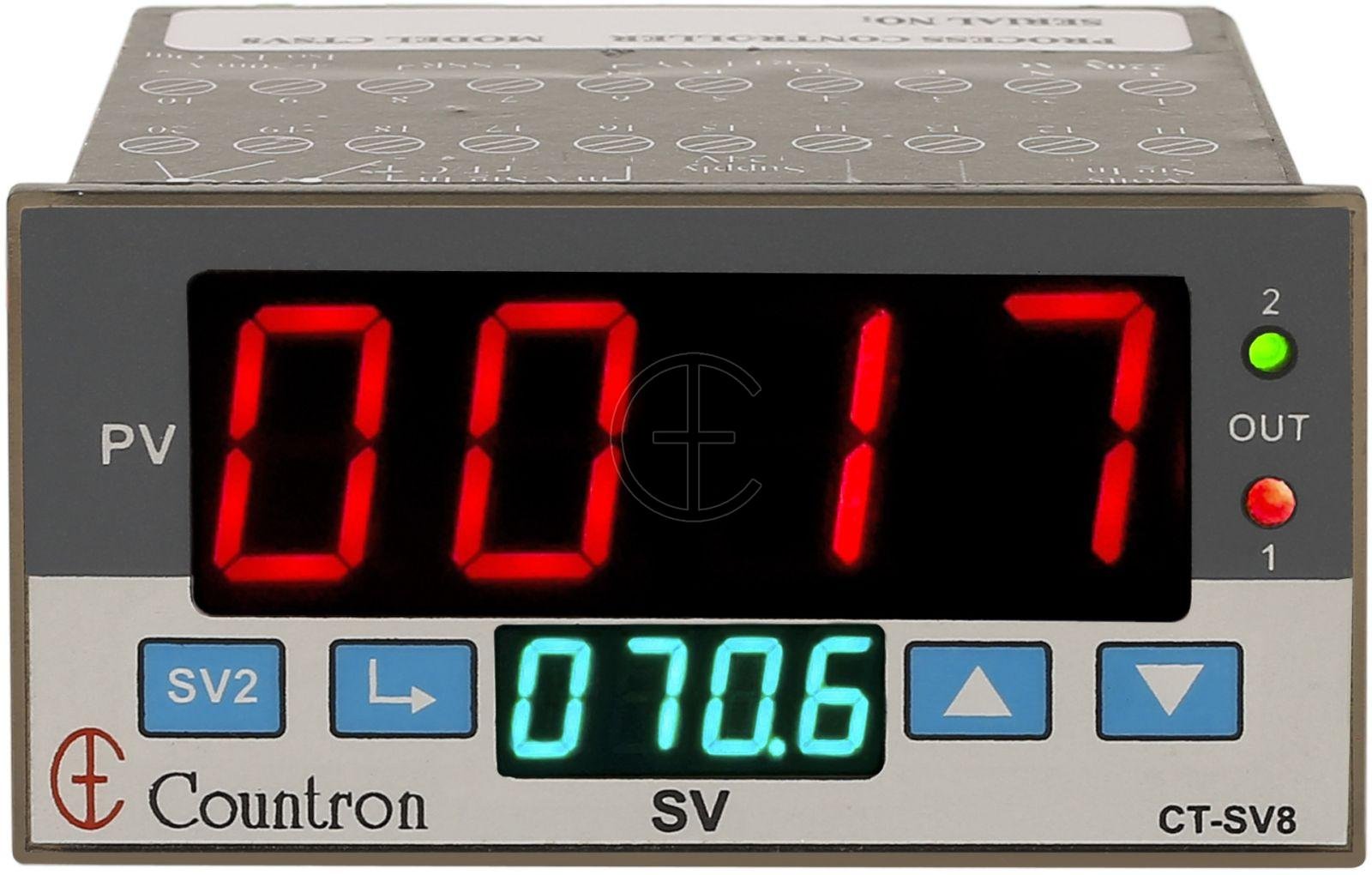

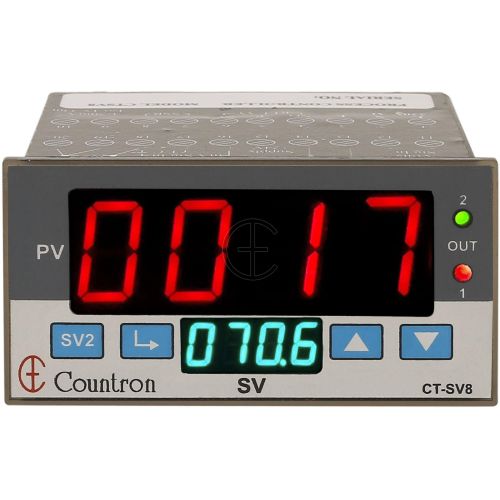

| Business Type | Manufacturer, Exporter, Supplier |
| Output | Isolated 4-20mA Re-transmission Output For All Inputs |
| Accuracy | ±0.25% Of SPAN ± 1 Count |
| Resolution | Settable 0.001 To 9999 For Linear Inputs, 1degC For Thermocouples, 0.1degC For PT100 |
| Control | 2 Set Of Control Limits, Set-1 Heater Logic & Set-2 Cooler Logic, 5 Amps/220V AC Relay Output For Set 1, SSR 12V DC Output For Set 2, Hysteresis Settable |
| Exciter Voltage | 24V @ 30mA For Loop Tx |
| Rated Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Humidity | Up To 90% (non-condensing) |
| Power Consumption | 10VA |
| Case | 48 X 96 X 85 Mm Plastic ABS |
| Front Fascia | 48 X 96 Mm |
| Panel Cutout | 43 X 91 Mm |
Features
- Large 4 Digit 0.8” 7 Segment LEDs for Process Value. Separate 0.36” Green Display for Set Value
- PT100 (RTD) sensor & 5 types of common thermocouples with Auto cold junction compensation
- Input for 4-20mA / 0-20mA / 1-5V / 0-5V/ 0-10V from Tx for Pressure, Humidity, pH, Temperature etc.
- Display user programmable from -1999 to 9999
- Decimal user settable
- Heater logic relay and Cooler Logic SSR outputs
- 4-20mA isolated re-transmission output
- Hysterisis for set limits user settable
- Offset separately programmed from front
- Excitation voltage for loop Tx. Sourced
Display
- 4 Digit 0.8” Red 7 Segment LED display for Process Value
- 4 Digit 0.36” Green 7 Segment LED display for Set Value
Inputs
- Linear (Universal from Tx)
- 0-20mA, 4-20mA, 0-5V, 1-5V & 0-10V
- Non-linear (temperature sensors)
- T/C – R,T,J,K,N and 3 Wire PT100

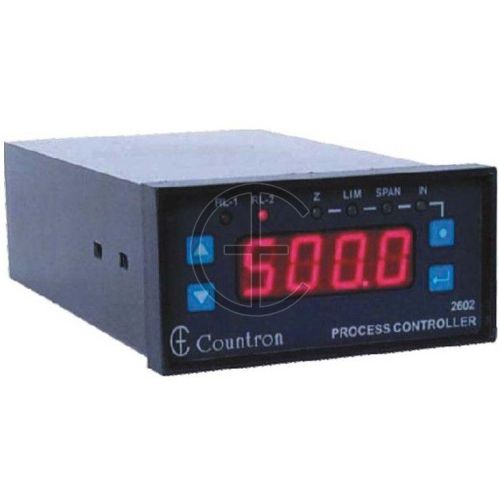

| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ±0.25% Of SPAN ± 1 Count |
| Resolution | 0.001 To 9999 For Linear Inputs, 1.0 Or 0.1 For Temperature Display |
| Control | 2 Set Of Control Limits, Set-1 Heater Logic & Set-2 Cooler Logic, 5 Amps/220V AC Relay Contact Output, Hysterisis Settable |
| Calibration | By Software. Ambient By Rear Pot |
| Configuration Lock | Jumper At Rear |
| Exciter Voltage | 24V @ 30mA For Loop Tx |
| Rated Power | 220V AC ± 15% @ 50/60 Hz |
| Ambient | 0-55˚C |
| Humidity | Up To 90% (non-condensing) |
| Power Consumption | 10VA |
| Case | 48 X 96 X 180 Mm Plastic ABS |
| Front Fascia | 48 X 96 Mm |
| Panel Cutout | 45 X 92 Mm |
Features
- Microprocessor based precision controller
- Linearised for 7 types of common thermocouples & PT100 Temperature sensor with Auto cold junction compensation
- Input for 4-20mA / 0-20mA / 1-5V / 0-5V from Tx for Pressure, Humidity, pH, Temperature etc.
- Display user programmable from 0 to 9999
- 4 Digit 0.56” Bright 7 Segment LEDs
- Decimal user settable
- Separate heater & cooler logic relays
- Hysterisis of relay control settable
- Offset separately programmed from front
- Configuration lockable by rear jumper
- Excitation voltage for loop Tx. Sourced
- Touch type membrane control keys

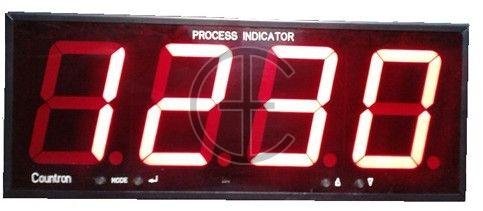

| Business Type | Manufacturer, Exporter, Supplier |
| Display | 4 digit 4” 7 segment Red LED display for Process Values |
| Sensor | J,K,R T/C, 3 Wire PT100 And 4-20mA |
| Range | J T/C : 0 To 750˚C, K T/C : 0 To 1250˚C, R T/C : 0 To 1700˚C, PT100: -100.0 To +600.0˚C |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Resolution | Settable 0.000 To 0000 For 4-20mA Input, 1˚C For Thermocouples, 0.1˚C For PT100 |
| Offset Band | Settable From -25.0˚C To +25.0˚C |
| Exciter Voltage | 24V @ 30mA For Loop Tx |
| Memory | Non-volatile EEPROM To Save Settings |
| Configuration Lock | Open Lock Terminals To Lock The Sensor Type |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | 395mm X 119mm X 158mm |
Features
- Microprocessor based controller, linearised for PT100 sensor & 3 thermocouples (J,K,R) and 4-20mA with Auto cold junction compensation
- Input for 4-20mA programmable from Tx for Pressure, Humidity, pH, Temperature etc.
- Span, Zero and resolution user programmable for 4-20mA input
- Large 4” height bright Red LED Displays for long distance viewing
- Offset digitally programmable from front
- Configuration lockable by jumper on terminals
- Non-volatile memory to save settings
- Aesthetically designed front panel

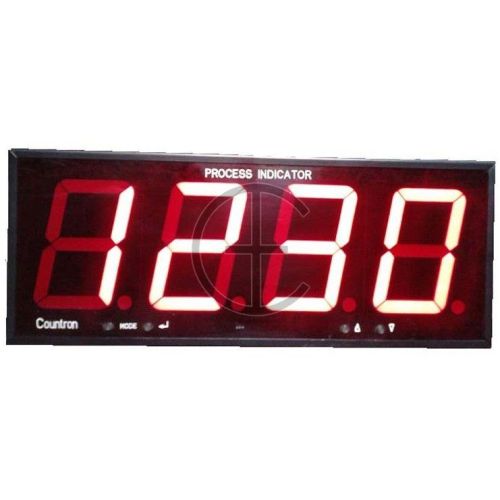

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Temperature Indicator |
| Display | 4 Digit 4” 7 Segment Red LED Display For Temperature |
| Sensor | J,K,R & 3 Wire PT100 |
| Range | J T/C: 0 To 750˚C, K T/C: 0 To 1250˚C, R T/C: 0 To 1700˚C, PT100: -100.0 To +600.0˚C |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Offset Band | Settable From -25.0˚C To +25.0˚C |
| Memory | Non-volatile EEPROM To Save Settings |
| Configuration Lock | Open Lock Terminals To Lock The Sensor Type |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | 395mm X 119mm X 158mm |
| Mounting | Wall Mounting |
| Weight | 2 Kg |
Features
- Microprocessor based controller, linearised for PT100 sensor & 3 thermocouples (J,K,R) with Auto cold junction compensation
- Large 4” height bright Red LED Displays for long distance viewing
- Offset digitally programmable from front
- Configuration lockable by jumper on terminals
- Non-volatile memory to save settings
- Aesthetically designed front panel
