Digital Temperature Indicator, Controller, Logger
Leading Manufacturers, Exporters and Wholesaler of 16 Channel Temperature Controller, 6308UC 8 Channel Universal Scanner Logger, Automatic Infrared Non Contact Temperature Indicator, Digital Humidity Indicator, Digital Temperature Controller with Soak Timer, Model 7210 Digital Humidity Controller and Model 7214 Digital Temperature Controller from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Number Of Channels | Maximum 16 |
| Sensor | J,K,R T/C Or 3 Wire PT-100 |
| Range | J T/C: -50˚C To 750˚C, K T/C: -50˚C To 1250˚C, R T/C: 0 To 1700˚C, PT100: -100.0 To +600.0˚C |
| Resolution | 1˚C For Thermocouples, 0.1˚C For PT100 |
| Accuracy | ±0.1% Of F.S. ±1 Digit |
| Control Scan Rate | Max 10 Seconds For Complete 16 Channel Cycle |
| Auto/Manual Mode | Toggle Between Auto/Manual Modes With Front Panel Indication |
| Display Rate | 1 To 99 Seconds Per Channel In Auto Mode |
| Memory | Non-volatile EEPROM For Saving Settings |
| Configuration Locks | At Rear Terminals To Lock Number Of Channels |
Features
- 16 Channel Microprocessor Based Temperature Scanner, linearised for PT100 & 3 T/Cs (J,K,R) with cold junction compensation.
- 16 separate monitor LEDs to indicate channel causing alarm
- Alarm scanning much faster than display scanning
- Manual/Auto Scanning selectable.
- Scan rate settable from front panel up to 99sec/channel.
- Number of channels user selectable.
- Configuration lock at rear to lock the number of channels and configuration.
- Non-volatile memory to save settings.
- Aesthetically designed front panel with membrane switches.

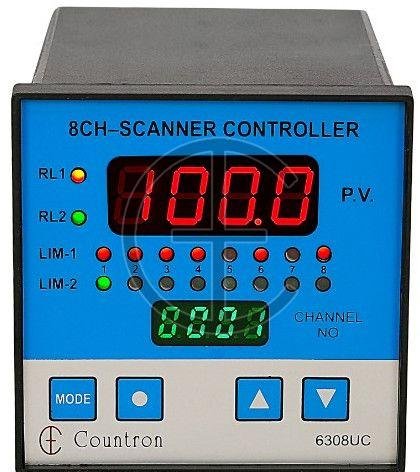

| Business Type | Manufacturer, Exporter, Supplier |
| Channels | Maximum 8 |
| Scanning Rate | User Settable From 1-99seconds |
| Digital Offset | User Settable Individually For Each Channel |
| Logging Rate | 1 Second To 99Mins59seconds |
| Data Logging | MODBUS-RTU For Accessing Data Of All Channels |
| MODBUS ID | 1-99, User Settable |
| Accuracy | +/-1˚C For Thermocouples, +/-0.1˚C For PT100 |
| High Alarm Relay | Activated When Any Channel Value Exceeds High Set Limit |
| Low Alarm Relay | Activated When Any Channel Value Falls Below Low Set Limit |
| Power Supply | 230V AC +/- 15% At 50/60Hz |
| Mounting Type | Panel Type |
| Front Facial | 96mm X 96mm |
Features
- MODBUS-RTU output of all channels
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors
- 4-20mA input with Low, High and resolution individually settable for each channel
- Independent High and Low Set Limits for each channel with independent LED indications for each channel
- Common High and Low Relays for alarm
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable
- Settable Modbus ID
- Auto/Manual mode of scanning selectable
- Digital offset user settable for individual channels
| Business Type | Manufacturer, Exporter, Supplier |
| Temperature Units | ˚C Or ˚F |
| Alarm Range | 95˚F To 105˚F |
| Resolution | 0.1 ˚C Or 0.1˚F |
| Accuracy | ±0.2˚C ±1 LSB |
| Alarm Type | Audio Alarm And Visual Alarm |
| Additional Output | Automatic Door Lock Opening |
| Recording Capacity | Up To 100 Counts |
| Size | 96mmx96mmx50mm |
| Power Supply | 220V AC |
| Material | Powder Coated Metal |
| Application | Temperature Measurement |
Features
- Operator independent. Detects presence of human automatically and displays temperature
- Periodic auto-calibration feature for accurate readings
- Non-contact operation from 2mm to 20mm distance
- Wall (key holes at rear) or stand mountable (bolts available at bottom)
- Flexible temperature sensor mount for camera (CCTV) to be used to capture face image as well as temperature display and count at the same time
| Business Type | Manufacturer, Exporter, Supplier |
| Resolution | 1% For Relative Humidity & 0.1˚C For Temperature |
| Range | 0 To 99% Humidity And 0 To 99.9˚C Temperature |
| Accuracy | ± 2% For RH ± 1 LSD. ± 0.2˚C For Temperature ± 1 LSD |
| Sensors | 2 Nos. PT100 In Sealed Stainless Steel Tubing |
| Power | 230V AC ± 15% |
| Sensor Body | Casted Aluminum Body With Built-in Water Container Facility |
| Water Wick | Made Of Pure Cotton. To Be Used With Distilled Water & Slight Air Breeze |
| Size | 96 Mm Panel Mounting Cut-Out 92 X 92 Mm |
| Weight | 1.2 Kg (including Sensor) |
Features
- Direct display of Humidity & Temperature using the classical DRY/WET Electronic temperature Sensors
- No need of Look-Up table as the table is embedded in the micro-controller memor.
- Easy to calibrate & compare with Mercury in Glass thermometer systems
- Sensors not contaminated by atmospheric gases etc. as the PT100 Sensors are sealed in steel tube.
- LED displays give visibility from a distance.
Display
- 2 Digits 7 Segment LEDs 0.56” character height (For Humidity)
- 3 Digits 7 Segment LEDs 0.56” character height (For Temp.)
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Temperature Controller |
| Proportional Band | -7.0˚C To +3.0˚C, 10% Per Degree Cut |
| Hysterisis Band | 0˚C To 20.0˚C |
| Percentage Power | 0% To 100% To Avoid Overshoots |
| Offset Band | -20.0˚C To +20.0˚C |
| Memory | Non-volatile EEPROM To Save Settings |
| Configuration Lock | Open Terminals 4&5 To Lock Sensor Type, Relay Logic, Set Limits |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | 96mm X 96mm X 135mm, Cut Out: 91mm X 91mm |
| Weight | 800 Grams |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable
- Heat/Cool mode for control action user settable
- Set Point for temperature control user settable
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.

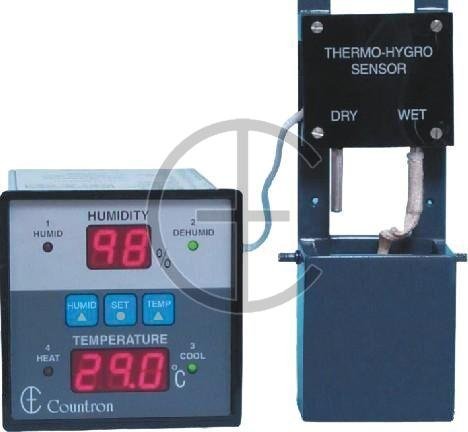

| Business Type | Manufacturer, Exporter, Supplier |
| Power Supply | 230V AC ± 15% |
| Display | Direct From Micro Processor Self Internal Lookup Tables |
| Accuracy | 2% For RH & 0.2°C For Temperature |
| Type | Digital Humidity Controller |
| Sensor | 2 X PT-100 |
| Temperature Control Range | 0-65°C |
| Humidity Control Range | 0-100% |
| Least Count | 1% For RH & 0.1°C For Temperature |
| Controls | By 10-Turn Helical Potentiometer |
Features
- mP Based Direct Display of Temperature & Humidity.
- No Need for Lookup Tables.
- Employs Classical Dry & Wet Bulb RTD(PT-100) Sensors.
Control Output
- TEMPERATURE :2 Relays are provided. One operating 0.5°C above the Set Point for Cooling and the other Operating 0.5°C below the Set Point for Heating.
- HUMIDITY : 2 Relays are provided. One operating 1% RH below the Set Point for Humidification and the other Operating 1% above the Set Point for De- Humidification

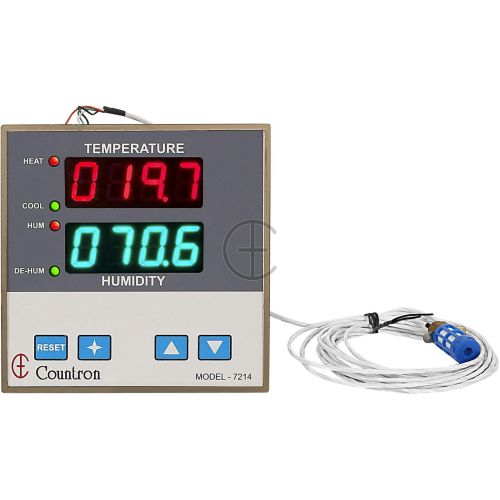

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Temperature Controller |
| Percentage Power | 0-200% for Set Limits of Humidifier and Heater. |
| Hysterisis | 0-9.9 for De-Humidifier and Cooler |
| Digital Offsets - Humidity | -19.9 to +19.9 for Humidity |
| Digital Offsets - Temperature | -19.9 to +19.9 for Temperature |
| Sensor Supply | 5V DC |
| SSR Outputs | +12VDC Heater, Cooler, Humidifier, De-Humidifier |
| Memory Retention | 10 Years |
| Mounting | Panel Mounting |
| Size | 96mm X 96mm. Depth 50mm |
| Weight | Approx. 375 Grams |
| Operating Temp. | 0-50˚C |
| Humidity | 95% RH |
Features
- Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
- 4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.
- Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power
- On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis
- Digital Offset control for Temperature and Humidity
- Capacitive sensor for 0-100% Humidity and -20˚C to +80˚C
- Non-Volatile memory to hold settings and counts
