| Business Type | Manufacturer, Exporter, Supplier |
| Settings | Individual Set Points By Front Panel Switches |
| Memory | Non-volatile Memory For Saving All Set Points |
| Power Supply | 230V AC ± 15% At 50/60Hz (Supply Cord Provided) |
| Click to view more | |
Product Details
Mounting Type
Wall Mounting
Front Facia Dimensions
6.2x6.7x2.2 Inches (WxHxD) (without Externally Mounted Sensors)
Weight
1.0 Kgs
Features

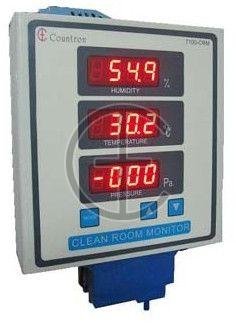

- Individual bright 7 segment Red LED displays for Humidity, Temperature and Pressure
- Alarm settings for all three parameters with in-built buzzer
- Visual annunciation of alarm by blinking of parameter display causing alarm
- Sensor supply for Humidity, Temperature and Pressure provided
- Sensors mounted on unit for stand alone application
- Aesthetically designed unit with sleek plastic body.
- Rear metal clamp for direct wall mounting
Display
- 3 Digits 0.56” RED 7 Segment LED for Humidity.
- 3 Digits 0.56” RED 7 Segment LED for Temperature
- 3 Digits 0.56” RED 7 Segment LED for Pressure
Range
- 0-95% for %RH
- -20.0 to +80.0˚C for Temperature
- 4-20mA => -118 to +118 Pascal for Pressure
Resolution
- 0.1% for Relative Humidity
- 0.1˚C for Temperature
- 1 Pa for Pressure
Control Logic
- Buzzer ON for Pressure > Set Point for Pressure OR
- Temperature > Set Point for Temperature OR
- Humidity > Set Point for Humidity
Alarm Indication
Blinking of display of parameter > Set Point with buzzer On.
