Data Loggers

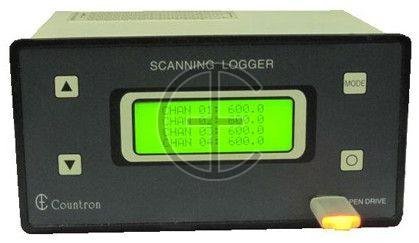

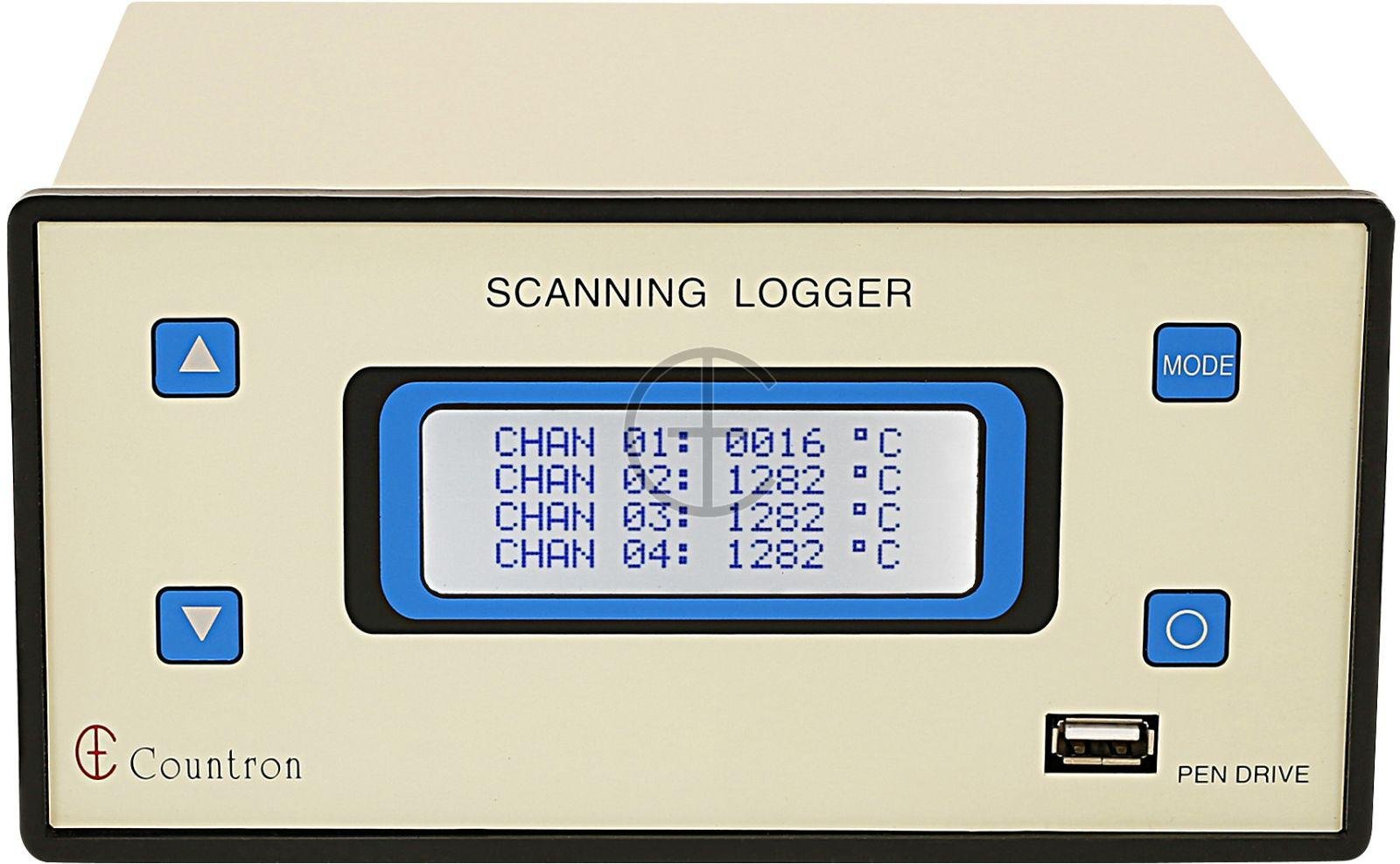

Leading Manufacturers, Exporters and Wholesaler of 16 Channel Data Logger with Direct USB Pen Drive, 16 Channel Temperature Scanning Logger, 16 Channel Universal Data Logger, 8 Channel Universal Data Logger with USB Pen Drive, Ct708 8 Channel Temperature Logger for USB Pen Drive, Humidity and Temperature Logger for USB Pen Drive, Strip Chart Recorder for AC Current and Universal Digital Temperature Controller Logger from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Display | 4x20 Line 0.3 |
| Sensor | J/K/R Thermocouples And 3 Wire PT100 Sensor User Selectable |
| Range | J-T/C: 0 To 750˚C K-T/C: 0 To 1250˚C R-T/C: 0 To 1700˚C PT100: -100.0 To +600.0˚C |
| Resolution | 1˚C For Thermocouples And 0.1˚C For PT100 |
| Channels | Maximum 16 |
| Scanning Rate | User Settable From 1-99 Seconds |
| Digital Offset | User Settable Individually For Each Channel |
| Logging Rate | 1 Second To 99Mins59seconds |
| Data Logging | Directly Create A .csv File On The Pen Drive |
| Real Time Clock | Adjustable Calendar (Month/Date) And Time (Hrs:Mins) |
| Accuracy | ±1˚C ±1 LSD For Thermocouples, ±0.1˚C ±1 LSD For PT100 |
| Power Supply | 230V AC ±15% At 50/60Hz |
| Mounting Type | Panel Type |
| Front Facia | 96mm X 192mm |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- 4 line alphanumeric LCD display with backlight for user friendly displays
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable from 1-16.
- Auto/Manual mode of scanning selectable
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable for individual channels
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Temperature Scanning Logger |
| Memory | Non-volatile EEPROM For Saving Settings |
| Display Rate | 1 To 99 Seconds Per Channel In Auto Mode |
| Configuration Locks | 1. Lock Number Of Channels, 2. Lock Clock Settings |
| Supply | 220V AC ± 15% At 50/60Hz |
| Ambient Temp. | Maximum 55˚C |
| Size (Front) | 96 X 192 Mm |
| Depth | 170 Mm |
Features
- 16 Channel Microprocessor Based Temperature Scanner, linearised for PT100 & 3 T/Cs (J,K,R) with cold junction compensation.
- Logging of 3000 readings of all 16 channels
- Serial RS-232 output to download all logged values to PC.
- In built Real Time Clock with battery back-up.
- Manual/Auto Scanning selectable.
- Scan rate settable from front panel up to 99sec/channel.
- User settable logging rate.
- Number of channels user selectable.
- Configuration locks at rear to lock the number of channels and clock settings.
- Non-volatile memory to save settings.
- Aesthetically designed front panel with membrane switches.
Display
- 4 Digit 0.56″ 7 Segment Red LEDs for Temperature
- 2 Digit 0.56″ 7 Segment Green LEDs for Channel Number
Sensor
J,K,R T/C or 3 wire PT-100 (common for all channels)
Range
- J T/C : -50˚C to 750˚C K T/C : -50˚C to 1250˚C
- R T/C : 0 to 1700˚C PT100: -100.0 to +600.0˚C
Logging Rate
Settable in Hours:Mins (00:01 to 23:59 ) RTC controlled with batterybackup to save 3000 readings
| Business Type | Manufacturer, Exporter, Supplier |
| Display | 4x20 Line 0.3 |
| Sensor | J/K/R Thermocouples And 3 Wire PT100 Sensor User Selectable |
| Range | J-T/C: 0 To 750˚C, K-T/C: 0 To 1250˚C, R-T/C: 0 To 1700˚C, PT100: -100.0 To +600.0 ˚C |
| Resolution | 1˚C For Thermocouples, 0.1˚C For PT100, User Selectable For 4-20mA |
| Channels | Maximum 16 |
| Scanning Rate | User Settable From 1-99 Seconds |
| Digital Offset | User Settable Individually For Each Channel |
| Logging Rate | 1 Second To 99Mins59seconds |
| Data Logging | Create .csv File On Pen Drive With Date, Time, And Selected Channels |
| Real Time Clock | Adjustable Calendar (Month/Date) And Time (Hrs:Mins) |
| Accuracy | +-1˚C +-1 LSD For Thermocouples, +-0.1˚C +-1 LSD For PT100 |
| Power Supply | 230V AC +-15% At 50/60Hz |
| Front Facia | 96mm X 192mm |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- 4-20mA input with Low, High and resolution individually settable for each channel.
- 4 line alphanumeric LCD display with backlight for user friendly displays
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable from 1-16.
- Auto/Manual mode of scanning selectable
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable for individual channels
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.

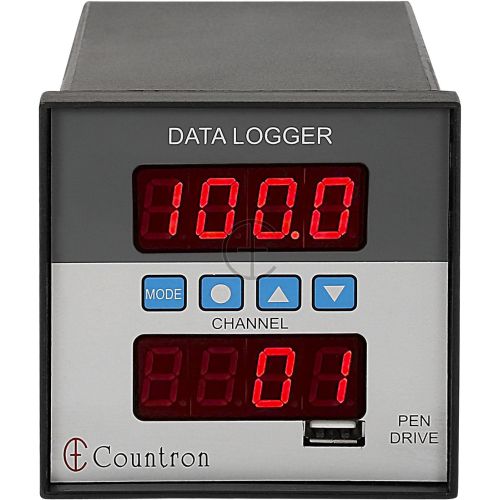

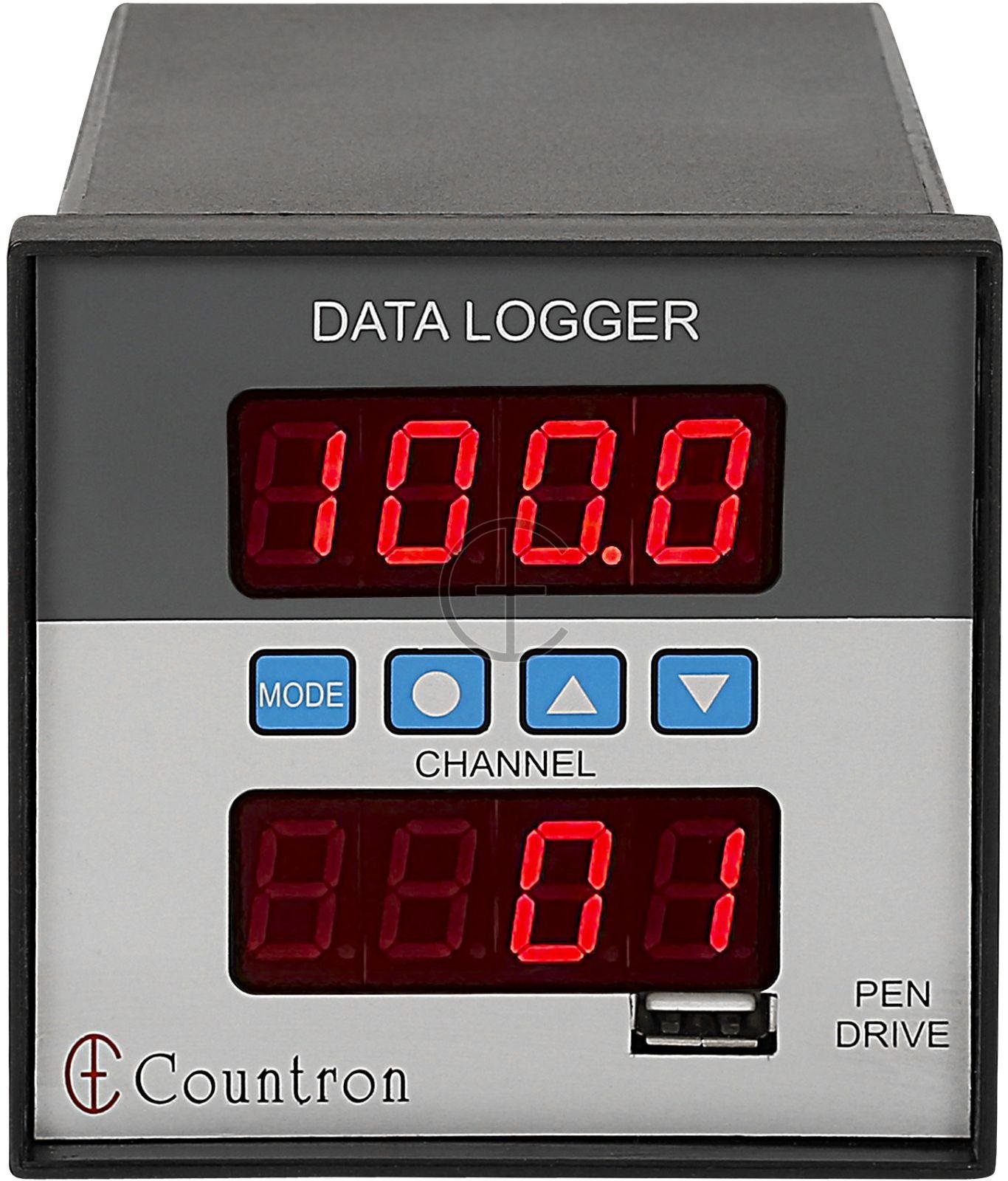

| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Automation Grade | Automatic |
| Display Type | Digital |
| Type | Data Loggers |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file/li>
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- 4-20mA input with Low, High and resolution individually settable for each channel.
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable.
- Auto/Manual mode of scanning selectable
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable for individual channels
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.
Display
- 0.56” Red LED display for Channel Number
- 0.56” Red LED display for Process Value
Sensor
J/K/R Thermocouples, 3 wire PT100 and 4-20mA input user selectable
Range
J-T/C : 0 to 750˚C K-T/C : 0 to 1250˚C R-T/C : 0 to 1700˚C PT100: -100.0 to +600.0˚C 4-20mA: -1999 to 9999 with resolution of 0.001, 0.01, 0.1 and 1

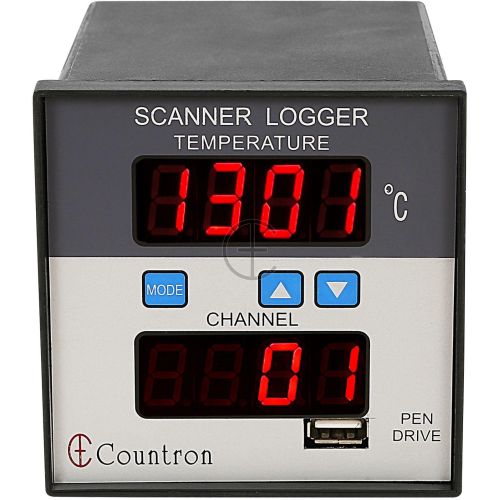

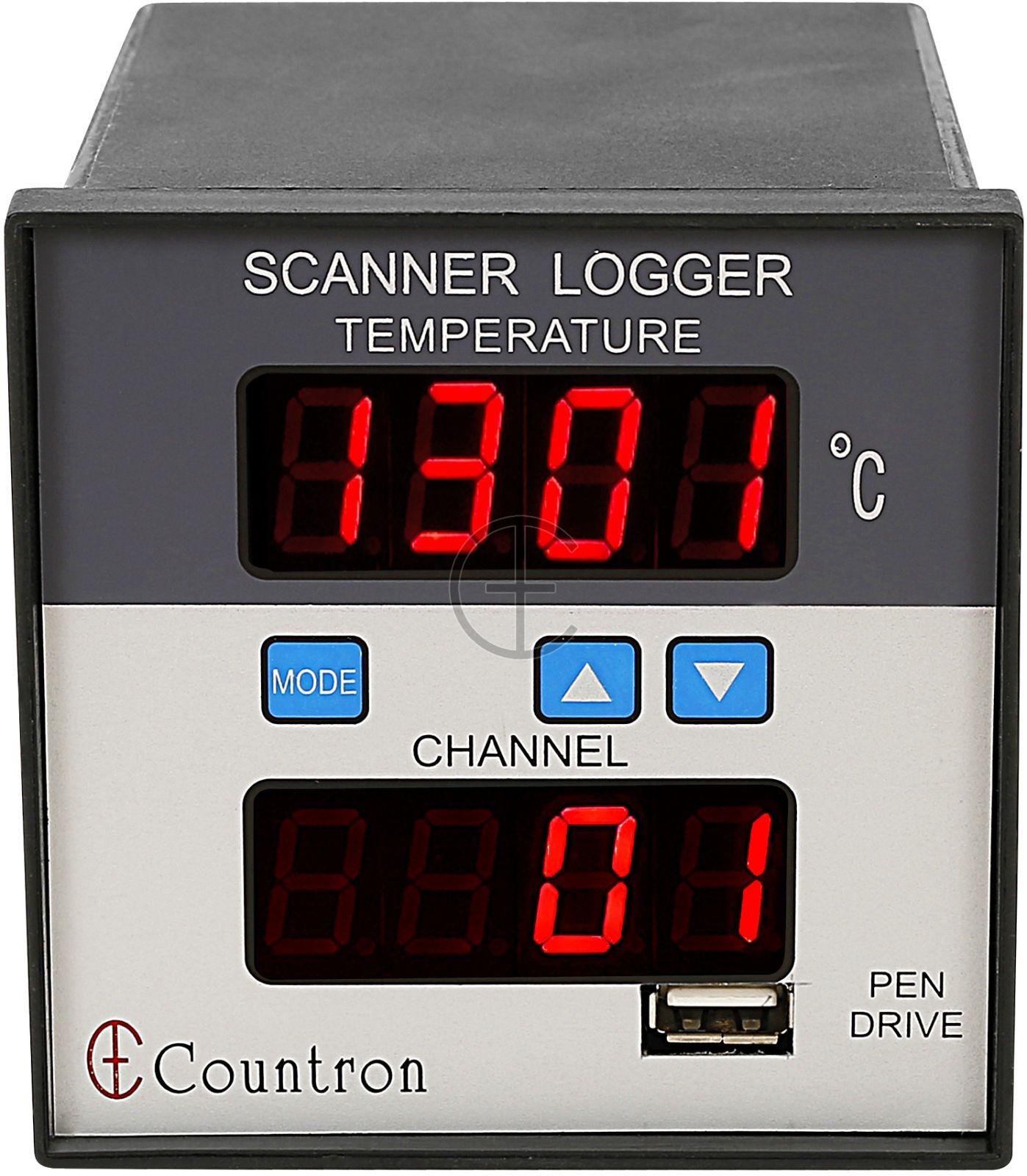

| Business Type | Manufacturer, Exporter, Supplier |
| Display | 0.56” Red LED display for Channel Number. 0.56” Red LED display for Process Value |
| Sensor | J/K/R Thermocouples, 3 wire PT100 and 4-20mA input user selectable |
| Resolution | 1˚C For Thermocouples, 0.1˚C For PT100 And User Selectable For 4-20mA |
| Channels | Maximum 8 |
| Scanning Rate | User Settable From 1-99seconds |
| Digital Offset | User Settable Individually For Each Channel |
| Logging Rate | 1 Second To 99Mins59seconds |
| Real Time Clock | Adjustable Calendar (Month/Date) And Time (Hrs:Mins) |
| Power Supply | 230V AC ± 15% At 50/60Hz |
| Front Facia | 96mm X 96mm |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file,
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable.
- Auto/Manual mode of scanning selectable
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable for individual channels
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.
Range
- J-T/C : 0 to 750˚C K-T/C : 0 to 1250˚C R-T/C : 0 to 1700˚C
- PT100: -100.0 to +600.0˚C
- 4-20mA: -1999 to 9999 with resolution of 0.001, 0.01, 0.1 and 1

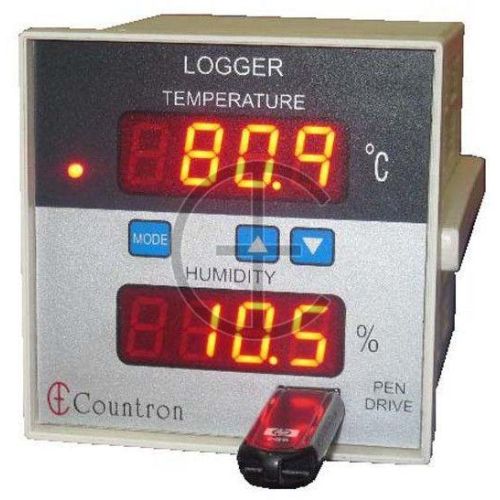

| Business Type | Manufacturer, Exporter, Supplier |
| Display Range | 0-100.0% For Relative Humidity And 0-100.0˚C For Temperature |
| Resolution | 0.1% For Relative Humidity And 0.1˚C For Temperature |
| Logging Rate | 1 Second To 99Mins59seconds |
| Real Time Clock | Adjustable Calendar (Month/Date) And Time (Hrs:Mins) |
| Power Supply | 230V AC ± 15% At 50/60Hz |
| Mounting Type | Panel Type |
| Front Facia | 96mm X 96mm |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Separate displays for humidity and temperature
- Capacitive sensor (Dry/Wet available on request) for humidity and PT100 sensor for temperature
- Rate of logging settable by user in Mins:Secs
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.

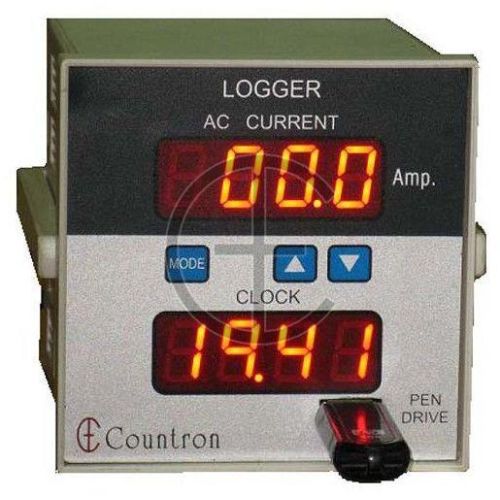

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Strip Chart Recorder |
| Display | 0.56” Red LED display for Current, 0.56” Red LED display for Clock |
| Display Range | 0-30.0 Amps AC For Input 0-1Amp AC (CT Ratio - 30:1) |
| Resolution | 0.1Amp |
| Logging Rate | 1 Second To 99Mins59seconds |
| Logging Threshold | Logging Is Enabled When Current Exceeds The Current 'Set' Limit |
| Data Logging | Directly Create A .csv File On The Pen Drive Giving A Tabular Format Values Of Date, Time And AC Current |
| Sensor | Current Transformer With Conversion Ratio 30:1 |
| Real Time Clock | Adjustable Calendar (Month/Date) And Time (Hrs:Mins) |
| Accuracy | +/- 1% +/- 1 Least Significant Digit For Current |
| Power Supply | 230V AC +/- 15% At 50/60Hz |
| Mounting Type | Panel/Bottom Surface |
| Front Facia | 96mm X 96mm |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Separate displays for Current and Clock
- Rate of logging settable by user in Mins:Secs
- Logging threshold user settable beyond which logging is enabled
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.

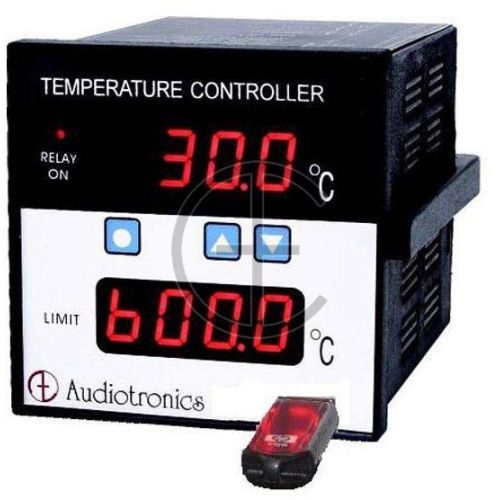

| Business Type | Manufacturer, Exporter, Supplier |
| Display | 4+4 Digit 0.56 |
| Sensor | J,K,R & 3 Wire PT100 |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Proportional Band | -7.0˚C To +3.0˚C Around Set Point With 10% Per Degree Cut |
| Hysterisis Band | Settable From 0˚C To 20.0˚C |
| Percentage Power | User Programmable From 0% To 100% To Avoid Overshoots And Save Power |
| Offset Band | Settable From -20.0˚C To +20.0˚C |
| Memory | Non-volatile EEPROM To Save Settings |
| Configuration Lock | Open Terminals 4&5 To Lock The Sensor Type, Relay Logic And Set Limits |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | 96mm X 96mm X 135mm. Cut Out : 91mm X 91mm |
| Weight | 800 Grams |
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable
- Heat/Cool mode for control action user settable
- Set Point for temperature control user settable
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.
