Amp-Hour
Leading Manufacturers, Exporters and Wholesaler of 220V Programmable AMP Hour Meter, 804AH Ampere Hour Meter with Dual Time Relay, 805AH Programmable Ampere Hour Meter, Ampere Hour Meter with Charge Discharge and Programmable AMP HR Meter from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Application | Indsustrial Usage |
| Feature | Accuracy, Durable, Low Power Comsumption |
| Availability | 800 grams |
| Display | 6 RED 7 Segment LEDs of 0.56” character height. |
| Current Display | Max 9999 Amps using a shunt of current/75mV. User programmed. |
| Max shunt | Max value of 9999 Amp corresponding to 75mV |
| Supply | 220V AC +/- 10% |
| Size | Front Fascia 96mm x 96mm Din Size. Depth 135mm. Cut Out : 91mm x 91mm. |

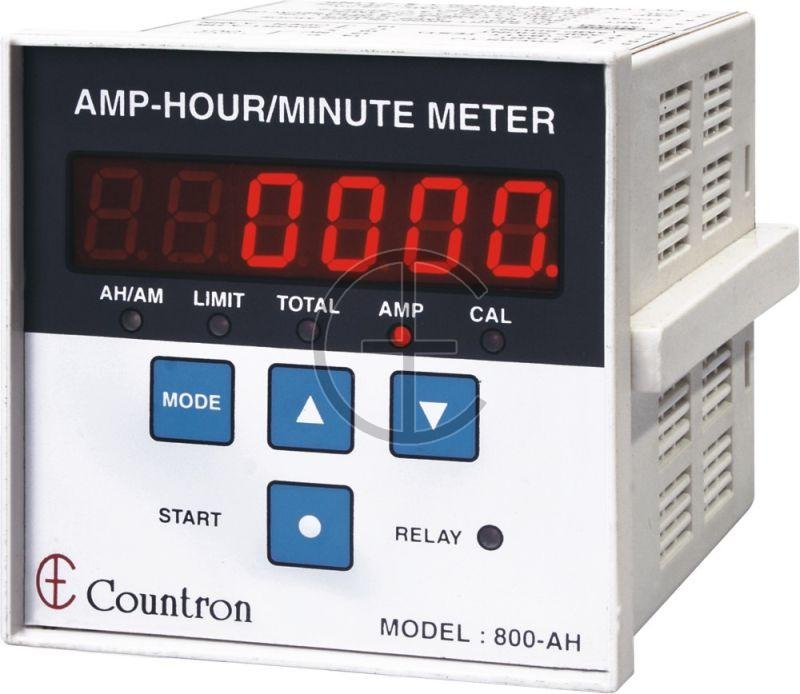

Features
- Current Integrated Display
- 4 DIG AMP-HOUR (Selectable: AH , 0.1 AH, AMin & 0.1 AMin)
- Presetable Limit for Amp-Hour with Relay Out,
- 6 Digit Totalizer AH Stored in EEPROM & Front Resettable
- Displays Current in Amps
- Lockable Scale Factor -CAL- for Various Shunts
- Signal Input in mV from Current Shunt of 75mV/Amp
- Application in Constant Thickness Electroplating which is Proportional to Preset AH Limit, irrespective of Voltage/ Current Variation.
- Simultaneous Input for mV(from Current Shunt) and Battery Voltage, to measure the AH of a chargeable Battery when Voltage falls to Factory-Settable Limit( usually 10.5V for 12V Batt)
| Business Type | Manufacturer, Exporter, Supplier |
| Weight | 800 Grams |
| Max Shunt | 9999 Amps, 75mV Settable |
| Calibration | Front Panel |
| Set Point | 0-999999 |
| Resolution | 1AH/0.1AH/1AM/0.1AM |
| Totaliser | 6 Digits For Ampere-Hour Or Ampere-Minutes |
| Time Relays | 2 Relay Contacts With Individual Time Settings For Timed Dual Dosing |
| Contact Rating | NO-P-NC @ 5Amps/220V AC |
| Memory | Settings And Ampere-Hours Saved In Solid State EEPROM |
| Lock | Non-volatile EEPROM Solid State Memory For Preserving Status On Power Failure |
| Supply | 220V AC @10% @ 50/60Hz |
| Size | Depth 135mm, Cut Out: 91mm X 91mm |
Features
- This micro-controller based programmable Amp-Hour Meter is designed to integrate and display DC current flowing respect to time. It becomes a measure of the total current energy.
- It allows user calibration for any shunt up to 9999 Amps for 75mV
- It can be used for Ampere-Hours or Ampere-minutes. The meter has separate displays for current and ampere-hours/mins.
- The Cumulative Ampere-Hour is stored on power failure. A settable limit for Ampere-Hours with dual time relays makes the instrument ideal for repeated accurate dosing cycles.,
- Rear calibration lock to prevent tampering with settings and an aesthetically designed front panel with membrane switches complements the system.
Display
- 4 Digit 7 Segment Red LED display for Instantaneous Current
- 6 Digit 7 Segment Red LED display for Ampere-Hours/Mins
- 2 Red LEDs to indicate status of the 2 Relay contacts
| Business Type | Manufacturer, Exporter, Supplier |
| Weight | 800 Grams |
| Type | Hour Meter |
| Shunt Calibration | Maximum 9999 Amps, 75mV Settable |
| Set Limit | 0-9999 |
| Resolution | 1AH/1AM |
| Time Relay | Relay Contact With Time Settings |
| Contact Rating | NO-P-NC @ 5Amps/220V AC |
| Memory | Settings And Ampere-Hours Saved In EEPROM |
| Lock | Rear Jumper For Preventing Tampering |
| Supply | 220V AC ± 10% @ 50/60Hz |
| Size | Front Fascia 96mm X 99mm, Depth 135mm |

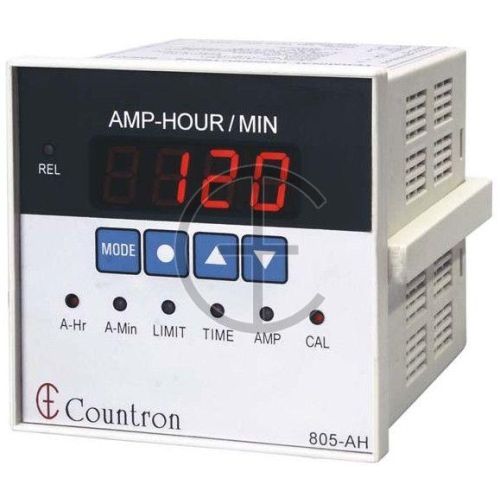

Features
- Shunt calibration programmable up to 9999 for 75mV
- Ampere-Hour/Minute selectable
- Ampere-Hour stored on power failure
- Time relay with on time settable in Mins:Secs
- Rear calibration lock to prevent tampering with shunt settings
- Aesthetically designed front panel with membrane switches
Display
- 4 Digit 7 Segment Red LED display for Ampere
- 1 Red LED to indicate status of Relay contacts
- 6 Red LEDs to for configuration settings
| Business Type | Manufacturer, Exporter, Supplier |
| Weight | 800 Grams |
| Application | Shunt Calibration,Discharge Monitoring,Alarm Mode |
| Body Material | Solid State EEPROM |
| Type | Ampere Hour Meters |
| Resolution | 1AH/0.1AH |
| Relay | In Alarm Mode For Discharge Ampere Hours |
| Contact Rating | NO-P-NC @ 5Amps/220V AC |
| Memory | Settings And Ampere-Hours Saved In Solid State EEPROM |
| Lock | By Rear Jumper To Prevent Accidental Tampering With Shunt Setting |
| Supply Voltage | 48V DC ± 10% (Also Available In 24V/96V/120V DC) |
| Size | Front Fascia 96mm X 96mm |
Features
- Separate 4 displays for Charging and Discharging ampere-hours,
- Auto recognition of charge/discharge current
- Shunt calibration programmable up to 9999 for 75mV
- Ampere-Hour counters stored on power failure
- Settable limit for Discharge Ampere-Hours
- Ampere Hour/Ampere Minute user selectable
- Rear calibration lock to prevent tampering with settings
- Aesthetically designed front panel with membrane switches
Display
- 4 Digit 7 Segment Red LED display for Charging Ampere Hours
- 4 Digit 7 Segment Red LED display for Ampere-Hours
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Monitoring And Measuring Amp-hour And Amp-minute Values |
| Type | Programmable Amp HR Meter |
| Size | Vertical Type With Front Panel 96 X 192 Mm |

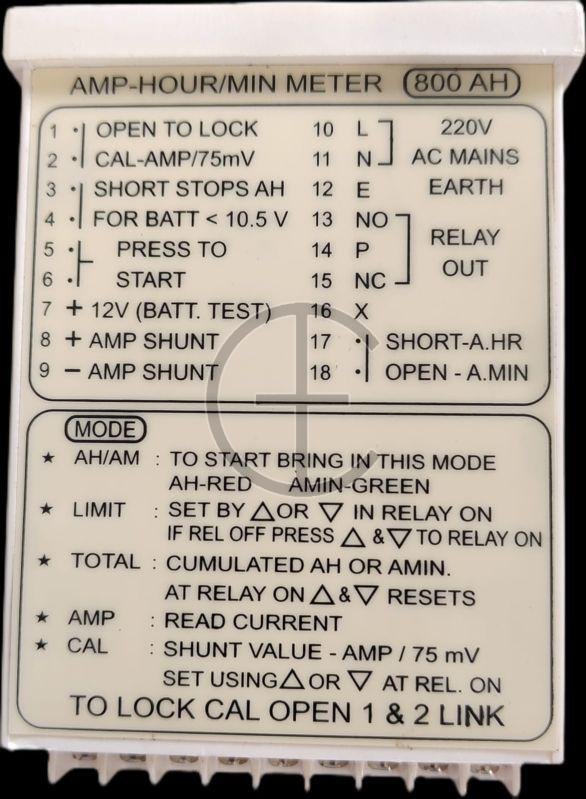

| Selection Of Amp | Short Pin 17-18 For Amp-Hour |
| Hour/Min | Open Link Of Pin 17-18 For Amp-Minute |
| 0.1AH/Amin | Higher 0.1 Resolution By Shifting Internal Jumper |
| Totaliser | 6 Digit Readable In 'Total' Mode |
| Limit | Up To 9999 Ahr/Amin Settable In Limit Mode |
| Relay | NO-P-NC Of 5 Amp At 220V AC Contact Rating |
| Start | Pressing Front Panel Switch Or Momentarily Shorting Rear Pins 5 & 6 |
| Lock | Open Link Between Pin 1 & 2 To Lock 'Cal' I.e. Shunt Value |
| Low Voltage | Internally Set At 10.5V For Testing 12V Battery |
| Stop | Short Pins 3 & 4 For This Function |
| Supply | 220V AC ± 10% At 50/60Hz |

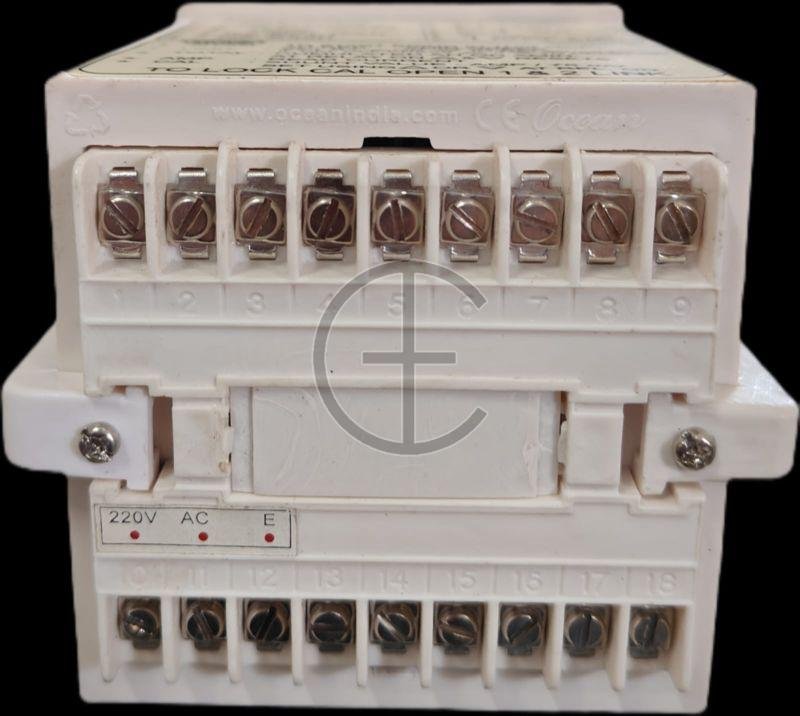

| Terminals | At Rear With Marking For Wiring |
| Mounting | Panel Mounted |
| Fuse | At Rear Of 0.2Amps |
Features
- Ideal for ensuring electroplating thickness by presetting AMP-HOUR,
- Useful for checking Amp-Hour of rechargeable batteries using voltage limit
- Separate displays for Voltage, Current and Amp-Hour
- Programmable for AH/0.1AH/Amin/0.1AMin
- Usable with any shunt by setting ‘Calibration’ for Amp-75mV
- Calibration factor lockable from rear
- 4 Digit Amp-Hour and 6 Digit cumulative Amp-Hour display
- Attractive front panel membrane switches in rugged Aluminum cabinet
- In case of power failure, the current status of selected parameters, the current Amp-Hour and Cumulative Amp-Hour is saved
Display
- All of 0.56in character height Red 7 Segment displays
- a.3 Digits to display voltage 0 – 99.9V
- b.4 Digits to display current 0 – 999.9Amps
- c.6 Digits to display Amp-Hour (4 Digit) and cumulative Amp-Hour (6 Digit)
Max. Shunt
Max. value of 999.9 Amps corresponding to 75mV. User programmable from front in ‘CAL’ mode. (Max. value of 9999Amps also available on request)
Memory
Non-volatile EEPROM solid state memory Stores programmed value of shunt, preset value, current Amp-Hr and the current Cumulative Amp-Hr to preserve current status on power failure
