| Business Type | Manufacturer, Exporter, Supplier |
| Number Of Cycles | 1-199 Cycles Settable For Cyclic Mode |
| Reset/Start | Front Reset/Start Switch With Parallel Terminals At Rear |
| Relay Logic | Settable Delayed On/Off, 5 Amps/220V AC Dual Relay Contact Outputs |
| Click to view more | |
Product Details
Timing Direction
Up/Down Time Counting User Settable
Memory
Non-volatile EEPROM To Save Settings
Configuration Lock
Open Terminals 1&2 To Lock All Configuration Except Set Limits
Supply
220V AC ± 15% @ 50/60Hz
Dimensions
Front Fascia: 96mm X 96mm X 50mm. Cut Out: 91mm X 91mm
Weight
800 Grams
Features
- 6 different timing ranges of 99.99sec, 999.9sec, 9999sec,99Mins59Secs, 9999Mins, 99Hrs59Mins
- Press to start/Power On start/Cyclic modes settable
- Delayed On/Off programmable by user from front panel
- Up/Down time counting user settable
- User settable starting On/Off time for cyclic mode
- Number of cycles settable for cyclic mode
- Non-volatile memory to save configuration and timing
- Configuration lockable by Password
- Front Reset/Start switch with parallel terminals at rear
- Aesthetically designed panel with membrane switches

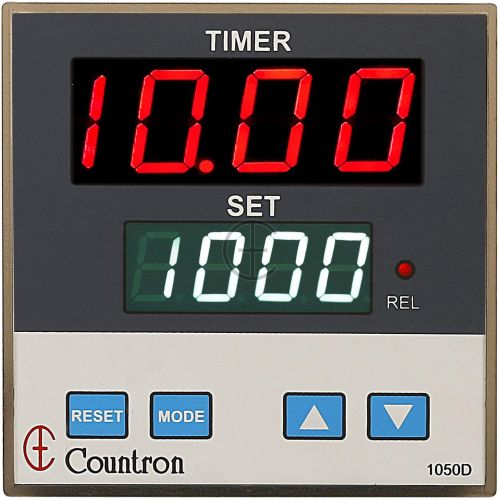

Looking for "Model 1050D Microprocessor Based Timer" ?
