Peak Load
Leading Manufacturers, Exporters and Wholesaler of CT-904 Peak Load And Displacement Recording Indicator, CT901 Peak Load Recording Indicator and CT902 Peak Load Recording Indicator from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Recording Indicator |
| Mode | Normal/Peak |
| Peak Read | 9 Peaks Of Load And Displacement |
| Peak Detection | Resettable Peak Hold |
| Tare Facility | Digital Tare With Zero Displacement Reset |
| Memory | Non-volatile EEPROM |
| Configuration Lock | Prevents Unauthorized Alterations |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | Front: 96mm X 192mm, Cut Out: 92mm X 188mm |
Features
- Separate displays for load indication and displacement
- Range for load indication corresponding to 4-20mA input digitally settable from front panel
- Calibration of displacement for different rotary encoders
- Peak/Normal mode selectable
- Up to 9 peaks can be recorded and recalled for Load and Displacement
- Buzzer annunciation at Peak
- Relay output for cut-off protection for load, displacement as well as breaking load
- Digital tare for load and displacement provided to remove initial error
- Non-volatile memory for saving configuration
- Configuration lock at rear to prevent tampering with Range
- Aesthetically designed front panel with membrane switches
Display
- 4 Digit 0.56” 7 segment Red LED display for Load (KN)
- 4 Digit 0.56” 7 segment Red LED display for Displacement (mm)
Range
- Load : 1KN to Range
- Displacement : 0.1mm to 999.9
Input
- From 2 wire loop transmitter giving 4-20mA output
- 4-20mA input => 0 – Range
- For displacement from 3 wire Rotary encoder (+5V pulses)

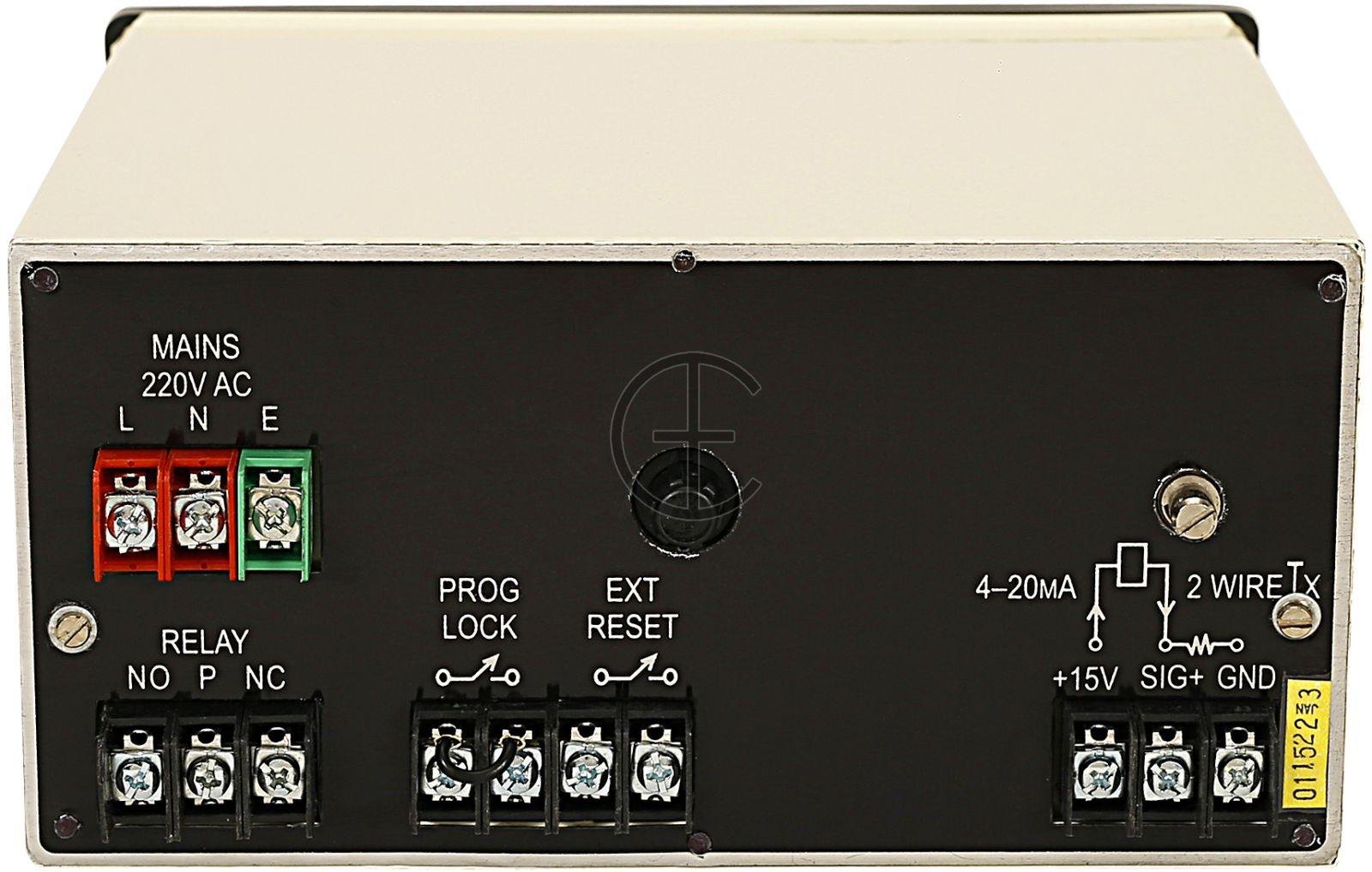

| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Range | 1KN To 9999 |
| Input | From 2 Wire Loop Transmitter Giving 4-20mA Output 4-20mA Input => 0 – Range |
| Relay Logic | When Actual Load ≥ Set Load Limit Relay Switches On. |
| Normal/Peak Mode | Selectable From Front Panel With LED Indication Of Mode |
| Peak Read | Last 9 Peaks Can Be Recalled With Facility To Reset Memory |
| Peak Detection | Peak Hold Is Resettable From Front Reset Switch Or By A Parallel Rear External Contact |
| Digital Tare | Digital Tare Using Front Panel Tare Switch Up To A Maximum Of 50KN |
| Memory | Non-volatile EEPROM To Save Settings |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | Front Fascia: 96mm X 192mm Cut Out : 92mm X 188mm |
Features
- Range for load indication corresponding to 4-20mA input digitally settable from front panel
- Peak/Normal mode selectable
- Up to 9 peaks can be recorded and recalled
- Buzzer annunciation at Peak
- Relay output for load limit detection with limit digitally settable
- Digital tare provided to remove initial error
- Non-volatile memory for saving configuration
- Configuration lock at rear to prevent tampering with Range
- Aesthetically designed front panel with membrane switches

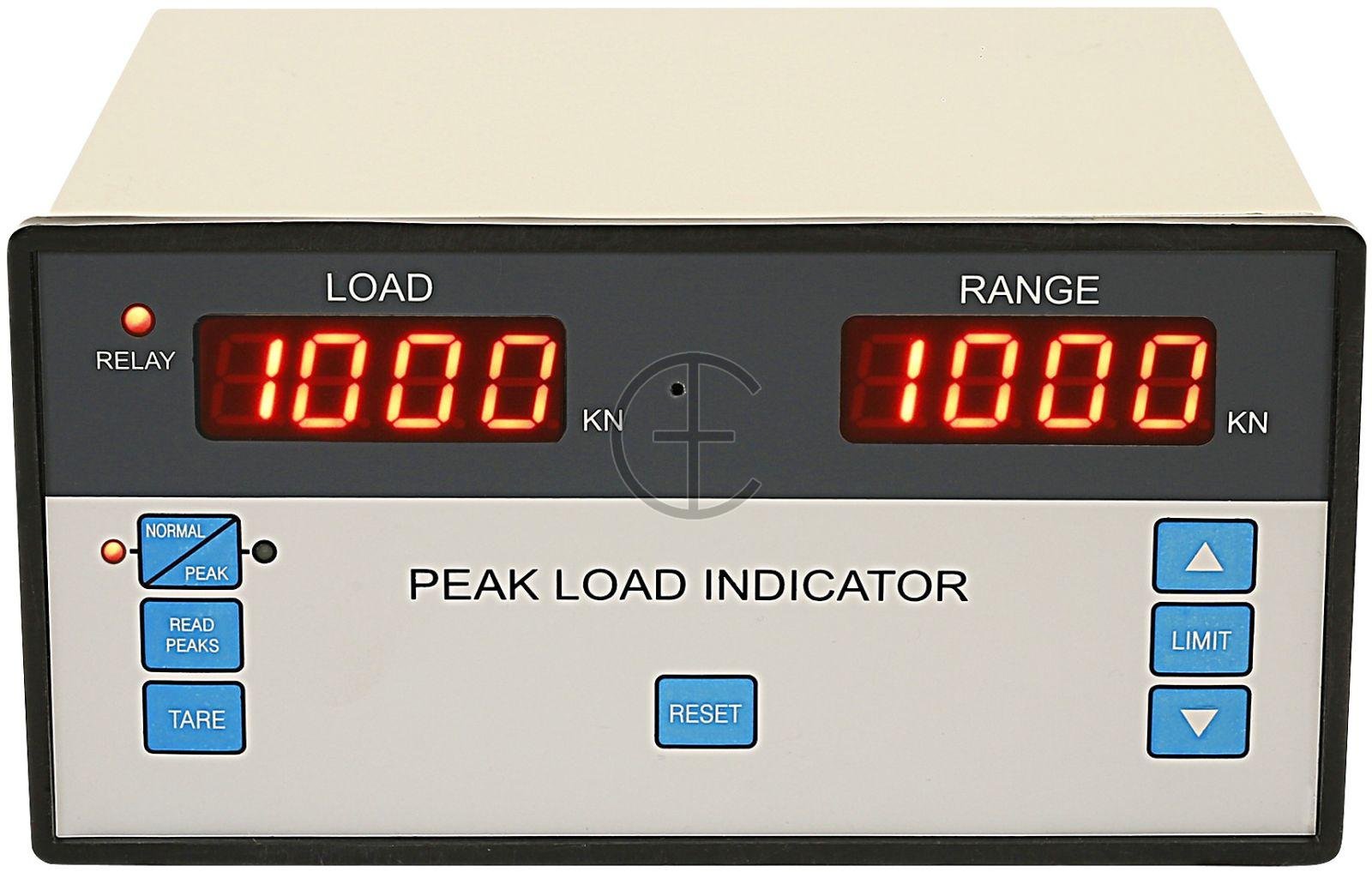

Display
- 4 Digit 0.56” 7 segment Red LED display for Load (KN)
- 4 Digit 0.56” 7 segment Red LED display for Set Point (KN)
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Peak Load Recording Indicator |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Input | From 2 Wire Loop Transmitter Giving 4-20mA Output |
| Relay Logic | When Actual Load ≥ Set Load Limit Relay Switches On |
| Normal/Peak Mode | Selectable From Front Panel With Indication Of Mode |

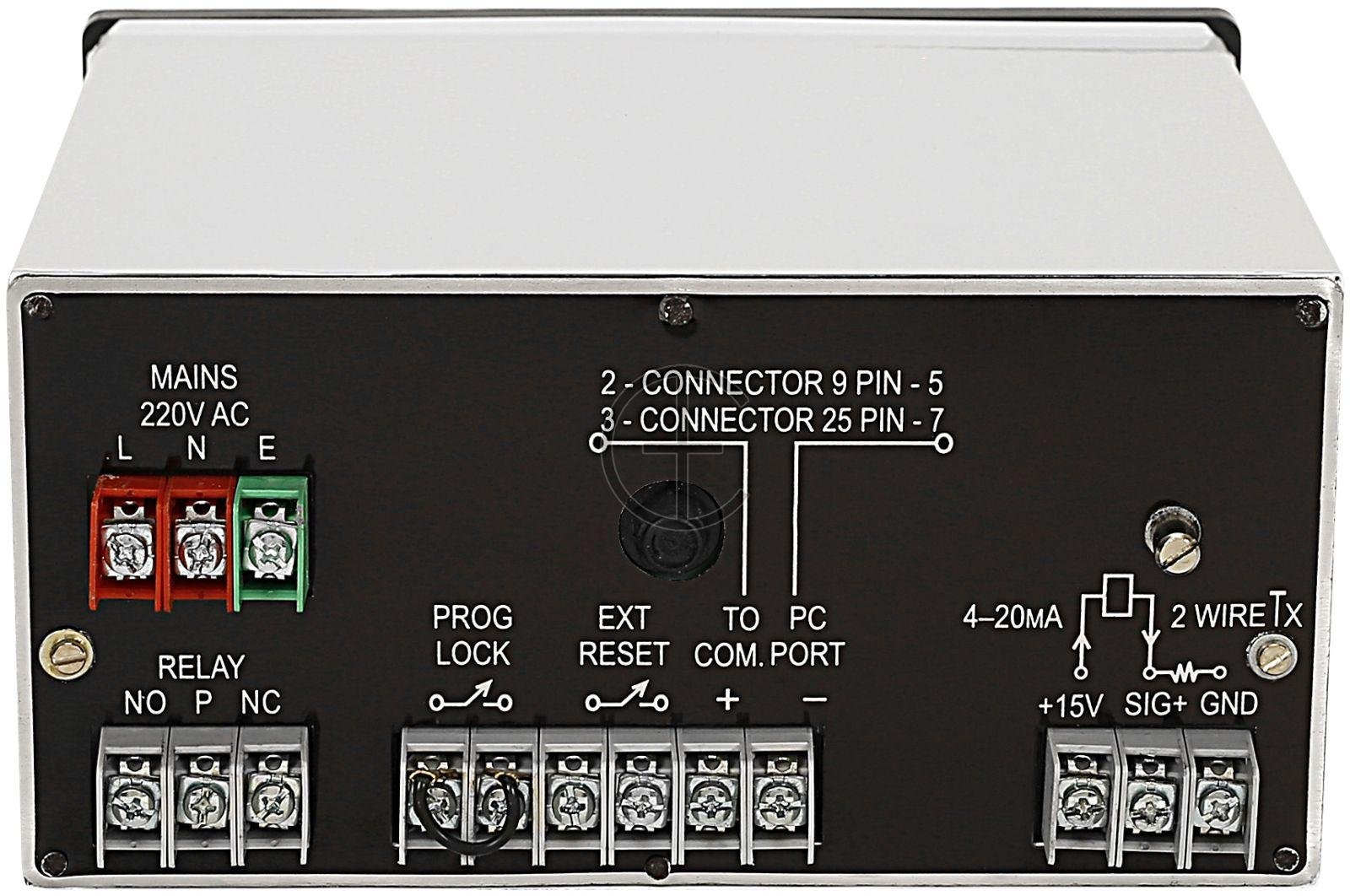

| Serial Output | Formatted RS-232 Output To Interface For Logging Using Hyperterminal |
| Real Time Clock | Date And Time Setting With Internal Battery Backup |
| Sample No | Auto Increment With Resetting Option |
| Peak Detection | Peak Hold Is Resettable From Front Reset Switch Or By Parallel Rear |
Features
- Large alphanumeric LCD display with backlight
- Pace Rate display in KN/sec
- Sample Area digitally settable
- Stress at Peak load calculated & displayed
- Auto incrementing Sample Number
- Peak/Normal mode selectable
- Buzzer alarm for peak detection in Peak Mode,
- Relay output for load limit detection
- Real Time Clock setting with battery backup
- Digital tare provided
- Non-volatile memory for saving configuration
- Formatted RS-232 serial output for logging on PC
- Configuration lock at rear to prevent tampering
- Aesthetically designed front panel with membrane switches

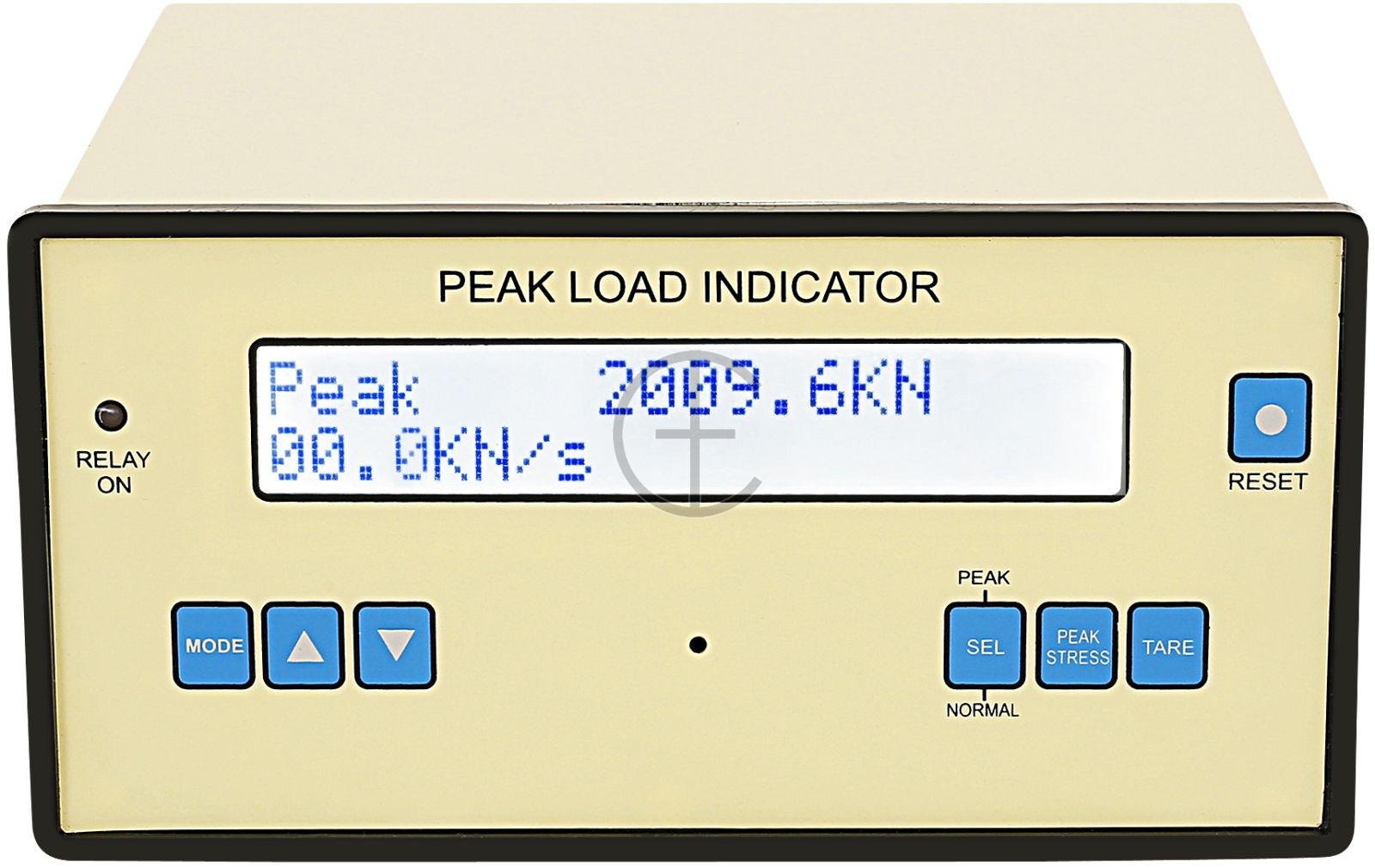

Display
- 2 Line alphanumeric display with back light illumination
- 4 digit for Load in KN , 3 digit for Pace Rate in KN/sec
- Peak/Normal indication
Range
- Load : 0.1KN to 6000KN
- Set Load (Limit) : 0.1KN to 6000KN
- Sample Area : 0.1cm2 to 999.9cm2
