| Business Type | Manufacturer, Exporter, Supplier |
| Power Range | 0-200% |
| Hysteresis Range | 0-9.9 |
| Digital Offsets | -19.9 To +19.9 For Humidity, -19.9 To +19.9 For Temperature |
| Click to view more | |
Product Details
Sensor Supply
5V DC
SSR Outputs
+12VDC Outputs Heater, Cooler, Humidifier And De-Humidifier
Memory Retention
10 Years
Mounting
Panel Mounting
Size
96mm X 96mm. Depth 50mm
Weight
Approx. 375 Grams
Operating Temperature
0-50˚C
Humidity
95% RH
Features
- Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
- 4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.
- Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power
- On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis
- Digital Offset control for Temperature and Humidity
- Capacitive sensor for 0-100% Humidity and -20˚C to +80˚C
- Non-Volatile memory to hold settings and counts
Display
- 4 Digit, 7 segment Green LED display (0.56” height) for Humidity
- 4 Digit, 7 segment Red LED display (0.56” height) for Temperature
Range
- 0-100.0% for Humidity (in 5˚C to 50˚C temperature range)
- -20.0˚C to +80.0˚C for Temperature
Set Limits
- 0-100.0% for Humidifier
- 0-100.0% for De-Humidifier
- -40.0˚C to +100.0˚C for Heater
- -40.0˚C to +100.0˚C for Cooler

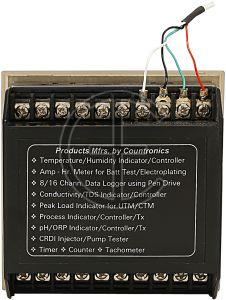

Looking for "Model 7214 Humidity Temperature Controller" ?
