Digital Timers
Leading Manufacturers, Exporters and Wholesaler of 10 Channel Sequential Timer, 2 Digit Digital Timer with LED Display and Thumb Wheel, 2 Digit On Off Repeat Cycle Timer, 3 Digit Digital Timer with LED Display and Thumb Wheel, Model 1050D Microprocessor Based Timer, Programmable Timer, Timer with 2 Thumb Wheel Settings Without Display and Timer with 3 Thumb Wheel Settings Without Display from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |

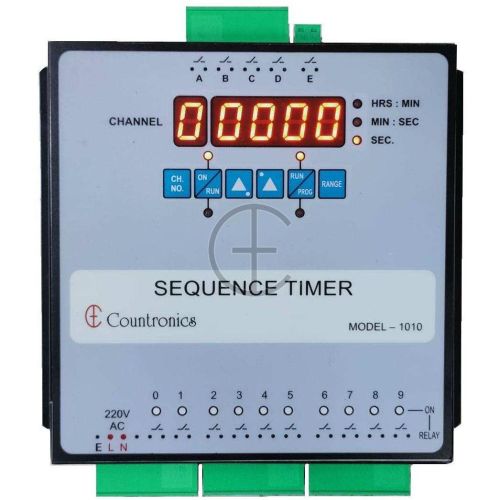

| Type | Sequential Timer |
| No. of Channels | 10 Channels |
| On Time Range | 0.01 Seconds To 99.59 Hours |
| Operation Mode | Single Cycle Or Cyclic |
| Remote Start | Selectable Via External Contact |
| Skipping Channels | Provision Available |
| Cascading | Possible For More Than 10 Relays |
| Power Failure Backup | Time Status Saved |
| Programming | On Line Programming Available |
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Country of Origin | India |
| Type | Digital Timer |
| Display Type | LED |
| Control Type | Thumb Wheel |
| Digits | 2 |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Quartz Crystal Base |
| Accuracy | 0.01% |
| Ranges | 0.01 Sec. To 9999 Min |
| Resolution | 0.01 Sec. To 0.1 Hr |
| Operation Modes | Delayed On/Off, Cascading, Single/Cyclic/Sequence |
| Initiation | Mains/Remote/Push Button |
| Timer Types | Blind/Digital |
| Mounting | Din Standard 96 X 48, 96 X 96, 96 X 192 Mm Panel/Wall |
| Power Options | 110V AC, 230V AC, 12V DC, 24V DC |
| Output | 2 Change Over Relay Contact @5A/230V AC Or Solid State Relay |
| Setting | Thumbwheel Switches |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Digital Timer |
| Display Type | LED |
| Number Of Digits | 3 |
| Control Method | Thumb Wheel |
| Power Source | Electric |
| Material | Plastic |
| Packaging | Box |
| Business Type | Manufacturer, Exporter, Supplier |
| Number Of Cycles | 1-199 Cycles Settable For Cyclic Mode |
| Reset/Start | Front Reset/Start Switch With Parallel Terminals At Rear |
| Relay Logic | Settable Delayed On/Off, 5 Amps/220V AC Dual Relay Contact Outputs |
| Timing Direction | Up/Down Time Counting User Settable |
| Memory | Non-volatile EEPROM To Save Settings |
| Configuration Lock | Open Terminals 1&2 To Lock All Configuration Except Set Limits |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | Front Fascia: 96mm X 96mm X 50mm. Cut Out: 91mm X 91mm |
| Weight | 800 Grams |
Features
- 6 different timing ranges of 99.99sec, 999.9sec, 9999sec,99Mins59Secs, 9999Mins, 99Hrs59Mins
- Press to start/Power On start/Cyclic modes settable
- Delayed On/Off programmable by user from front panel
- Up/Down time counting user settable
- User settable starting On/Off time for cyclic mode
- Number of cycles settable for cyclic mode
- Non-volatile memory to save configuration and timing
- Configuration lockable by Password
- Front Reset/Start switch with parallel terminals at rear
- Aesthetically designed panel with membrane switches
| Business Type | Manufacturer, Exporter, Supplier |
| Feature | Durable, Easy To Use, High Accuracy |
| Display | 4 Digit 0.8” Red 7 segment LED display for Time 4 Digit 0.56” Red 7 segment LED display for Set Time Red LED to indicate current status of Relay On/Off |
| Supply | 220V AC ± 15% @ 50/60Hz |
| Dimensions | Front Fascia: 96mm x 96mm x 50mm. Cut Out: 91mm x 91mm |
| Weight | 800 grams |
| Memory | Non-volatile EEPROM to save settings |
| Timing direction | Up/Down time counting user settable |
Features
- 6 different timing ranges of 99.99sec, 999.9sec, 9999sec,99Mins59Secs, 9999Mins, 99Hrs59Mins
- Press to start/Power On start/Cyclic modes settable
- Delayed On/Off programmable by user from front panel
- Up/Down time counting user settable
- User settable starting On/Off time for cyclic mode
- Number of cycles settable for cyclic mode
- Non-volatile memory to save configuration and timing
- Configuration lockable by Password
- Front Reset/Start switch with parallel terminals at rear
- Aesthetically designed panel with membrane switches
Specifications

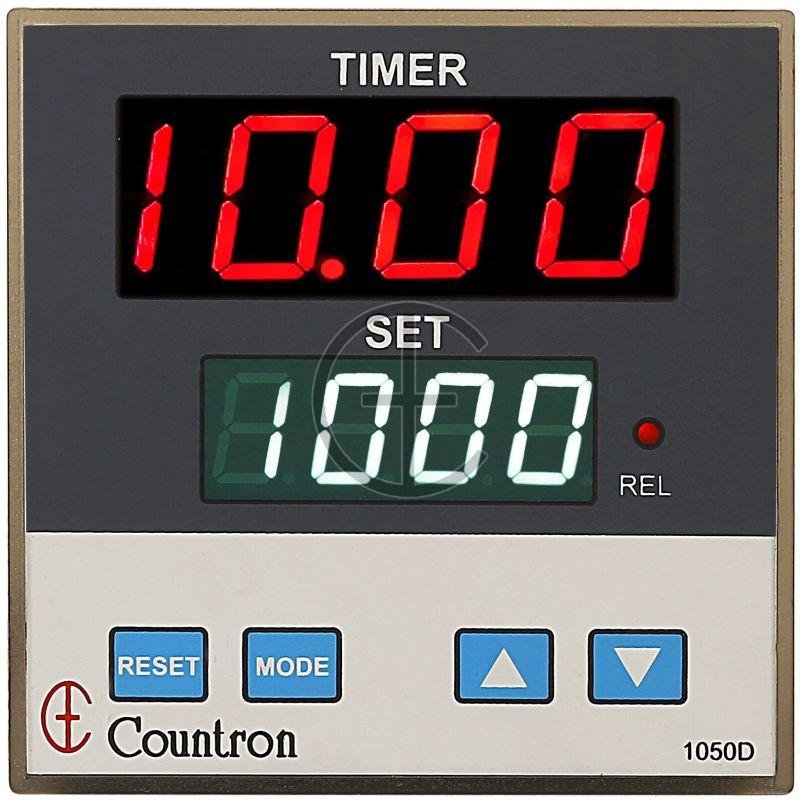

Display
- 4 Digit 0.8” Red 7 segment LED display for Time
- 4 Digit 0.56” Red 7 segment LED display for Set Time
- Red LED to indicate current status of Relay On/Off
Modes
User settable from front panel
- Power On start
- Press to start (with battery backup selection using EEPROM)
- Cyclic action
Number of Cycles : 1-199 cycles settable for cyclic mode after which the timer stops Setting number of cycles to Zero disables number of cycles setting

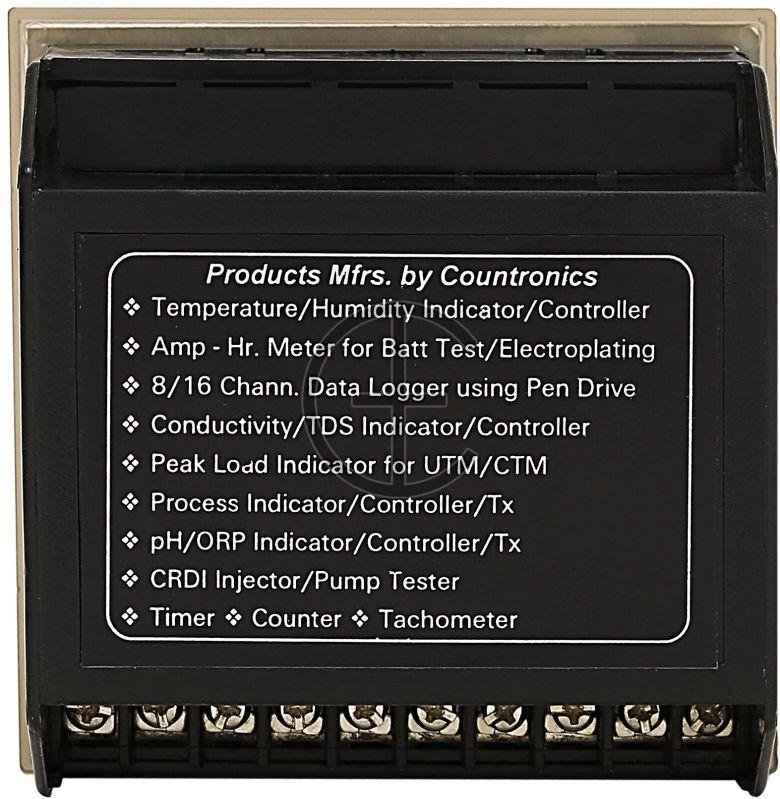

Reset/Start : Front Reset/Start switch with parallel terminals at rear to connect additional switch, if required.
Relay logic : Settable delayed On/Off, 5 Amps/220V AC Dual Relay Contact outputs
Timing direction : Up/Down time counting user settable
Memory : Non-volatile EEPROM to save settings
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Timer |
| Material | Quartz Crystal Base |
| Accuracy | 0.01% |
| Accuracy/Repeat Accuracy | 0.01% |
| Ranges | 0.01 Sec. To 9999 Min. |
| Resolution | 0.01 Sec. Or 0.1 Sec. Or 1 Sec. Or 0.1 Min. Or 1 Min. Or 0.1 Hr |
| Operation Modes | Delayed On/ Delayed Off, Cascading, Single, Cyclic, Sequence, Cyclic-cum-Sequence |
| Initiation | Mains, Remote, Push Button |
| Timers Type | Blind, Digital |
| Mounting | Din Standard 96 X 48, 96 X 96, 96 X 192 Mm Panel/Wall Mounting Case |
| Operation Voltage | 110 V AC, 230 V AC, 12 V DC, 24 V DC |
| Output | 2 Change Over Relay Contact @5A/230V AC Or Solid State Relay With AC Output |
| Setting Method | Thumbwheel Switches |
| Business Type | Manufacturer, Exporter, Supplier |
| Accuracy | 0.01% |
| Accuracy Repeat | 0.01% |
| Ranges | 0.01 Sec. To 9999 Min. |
| Resolution | 0.01 Sec. Or 0.1 Sec. Or 1 Sec. Or 0.1 Min. Or 1 Min. Or 0.1 Hr |
| Operation Modes | Delayed On/ Delayed Off, Cascading, Single, Cyclic, Sequence, Cyclic-cum-Sequence |
| Initiation | Mains, Remote, Push Button |
| Timer Type | Blind, Digital |
| Mounting | Din Standard 96 X 48, 96 X 96, 96 X 192 Mm Panel/Wall Mounting Case |
| Operation Voltage | 110 V AC, 230 V AC, 12 V DC, 24 V DC |
| Output | 2 Change Over Relay Contact @5A/230V AC Or Solid State Relay With AC Output |
| Setting Method | Thumbwheel Switches |
| Frequency/Voltage Independence | Independent Of Mains Frequency/Voltage Variations |
