| Business Type | Manufacturer, Exporter, Supplier |
| Type | Peak Load Recording Indicator |
| Accuracy | ±0.1% Of Full Scale ± 1 Digit |
| Input | From 2 Wire Loop Transmitter Giving 4-20mA Output |
| Click to view more | |
Product Details
Relay Logic
When Actual Load ≥ Set Load Limit Relay Switches On
Normal/Peak Mode
Selectable From Front Panel With Indication Of Mode
Serial Output
Formatted RS-232 Output To Interface For Logging Using Hyperterminal
Real Time Clock
Date And Time Setting With Internal Battery Backup
Sample No
Auto Increment With Resetting Option
Peak Detection
Peak Hold Is Resettable From Front Reset Switch Or By Parallel Rear
Features
- Large alphanumeric LCD display with backlight
- Pace Rate display in KN/sec
- Sample Area digitally settable
- Stress at Peak load calculated & displayed
- Auto incrementing Sample Number
- Peak/Normal mode selectable
- Buzzer alarm for peak detection in Peak Mode,
- Relay output for load limit detection
- Real Time Clock setting with battery backup
- Digital tare provided
- Non-volatile memory for saving configuration
- Formatted RS-232 serial output for logging on PC
- Configuration lock at rear to prevent tampering
- Aesthetically designed front panel with membrane switches

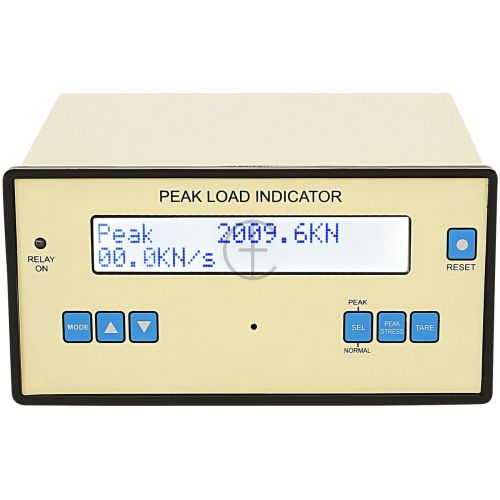

Display
- 2 Line alphanumeric display with back light illumination
- 4 digit for Load in KN , 3 digit for Pace Rate in KN/sec
- Peak/Normal indication
Range
- Load : 0.1KN to 6000KN
- Set Load (Limit) : 0.1KN to 6000KN
- Sample Area : 0.1cm2 to 999.9cm2
