Counter
Leading Manufacturers, Exporters and Wholesaler of Counters With Preset Limit and Counters Without Preset Limit from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Range | Maximum Count Of 9999 |
| Set Points | Single Set Points Programmable From 1-9999 |
| Batch Limit | Batch Limit Setting From 0 To 999 |
| Operating Modes | A. Auto Mode (Time Settable) B. Manual Mode (Delay Set To Zero) |
| Input Frequency | 0 To 1 KHz |
| Sensor Supply | 10V DC, Short Circuit Protected |
| Multiplying Factor | Programmable From 1-99 |
| Division Factor | Programmable From 1 To 99 |
| Reset Input | A. Front Panel B. Remote Reset By Rear Terminals |
| Relay Outputs | NO-Pole-NC Contact Rated At 5Amp @ 230 V AC |
| Memory Retention | 10 Years |
| Configuration Lock | By Password |
| Mounting | Panel Mounting |
| Size | 96mm X 96mm. Depth 50mm |
| Weight | Approx. 375 Gms. |
| Operating Temp. | 0-50˚C |
| Humidity | 95% RH |
Features

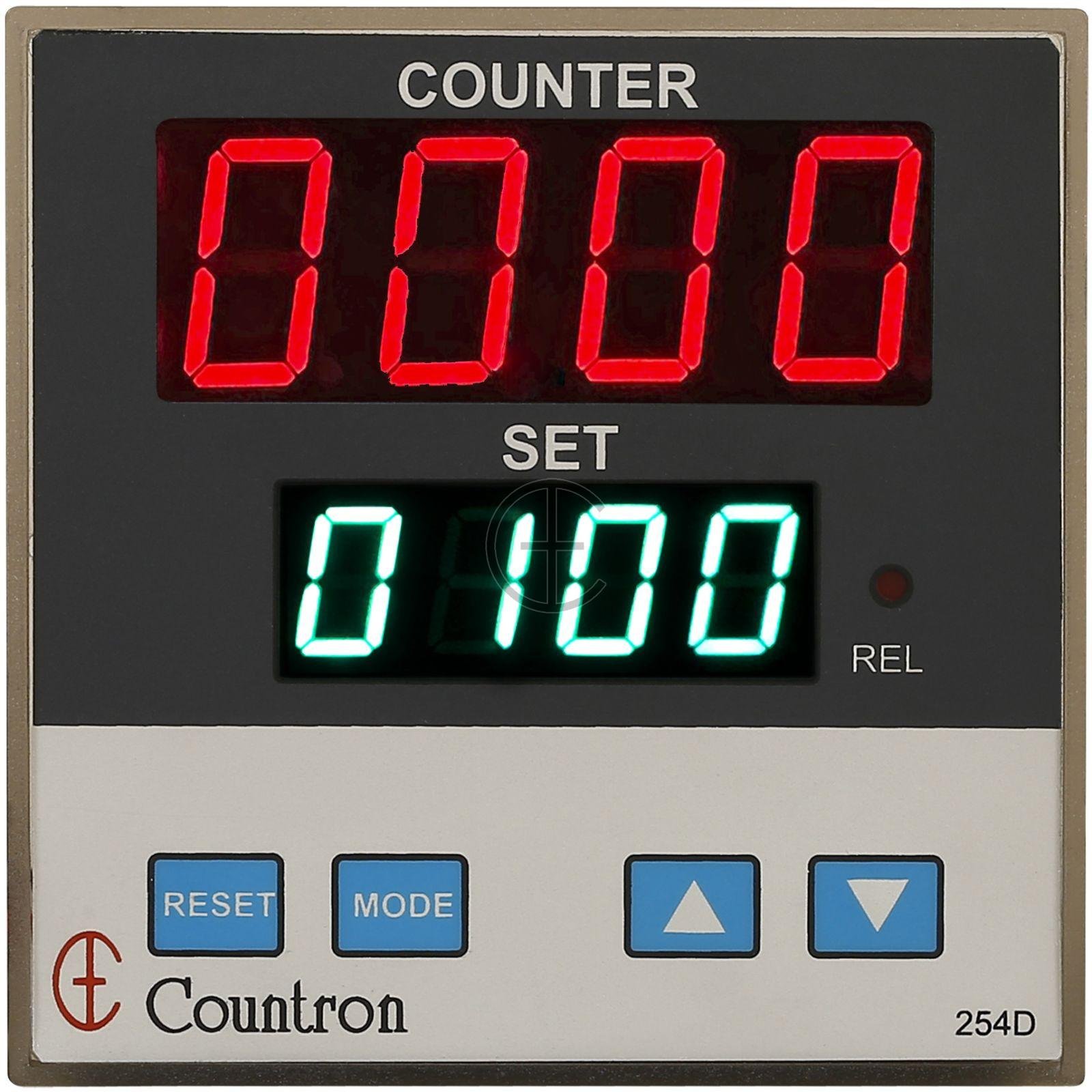

- 4 Digit Preset Counter with separate displays for Count and Set Limit
- Large 0.8” display for count, 0.56”
- Programmable Multiplying and dividing factor.
- Pre-settable Batch Counter
- Up/Down Counting Selectable
- Normal/Auto-Reset with Time setting
- Non-Volatile memory to hold settings and counts
- Password for Program configuration lock
| Business Type | Manufacturer, Exporter, Supplier |
| Type | 6 Digit Counter |
| Range | 999999 Counts |
| Reset Input | PushButton / Contact |
| Power Supply | 230 V AC Or 12 V DC |
| Battery Required | 4 Nos 1015 Type |
| Frequency Standard | Quartz Crystal |
| Gating Period | 1 Sec |
| Weight | Approx 300 Grms |
| Memory | Activated By Torch Switch |
| Battery | Low Indication Provided, Auto Shut Off Facility Built-in |
| Accessories | Male Female Rubber Centres, Rubber Disc To Measure Surface Speed Directly |
Size
- PANEL CUTOUT - 41×92 mm or 92x 92 mm
- FRONT FACIA - 48x96mm or 96×96 mm
